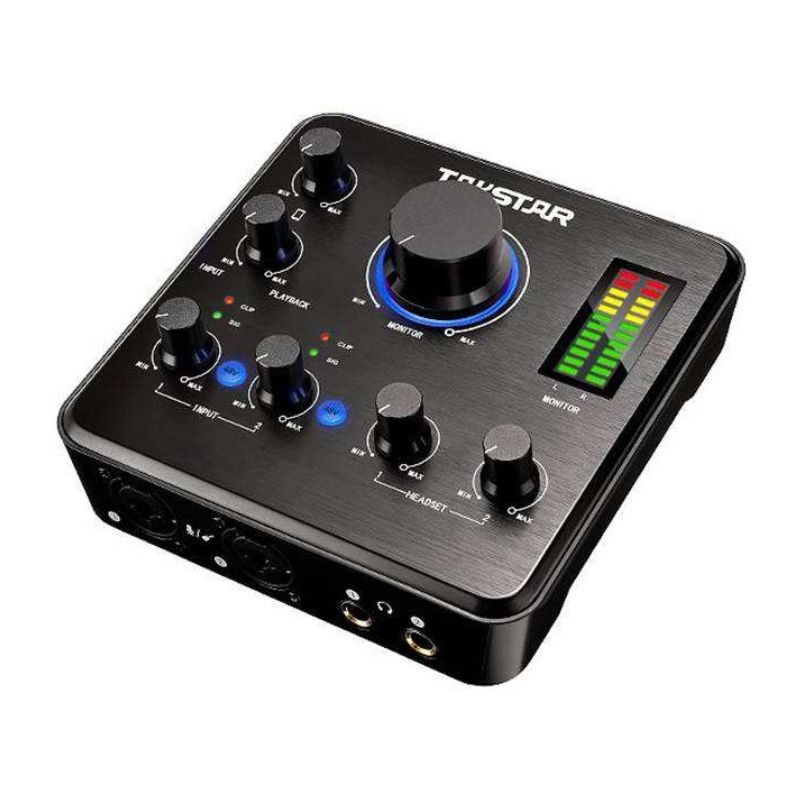

Takstar Mx630 Sound Card for Live Streaming, Recording

The Takstar MX630 (often labeled as the Webcast Pro or OTG version) is a professional-grade 4-in/4-out USB audio interface and sound card. Unlike the ultra-portable SC-M1, the MX630 is a more robust, “desktop-style” hub designed for high-fidelity recording, professional live streaming (webcasting), and network karaoke.

Its standout feature is the ASIO 2.0 driver support, which allows it to interface with professional recording software (DAWs) with near-zero latency.

Key Features

• High-Resolution Audio: Supports up to $24\text{-bit}/96\text{ kHz}$ sampling rates, providing much higher clarity and detail than standard $16\text{-bit}$ interfaces.

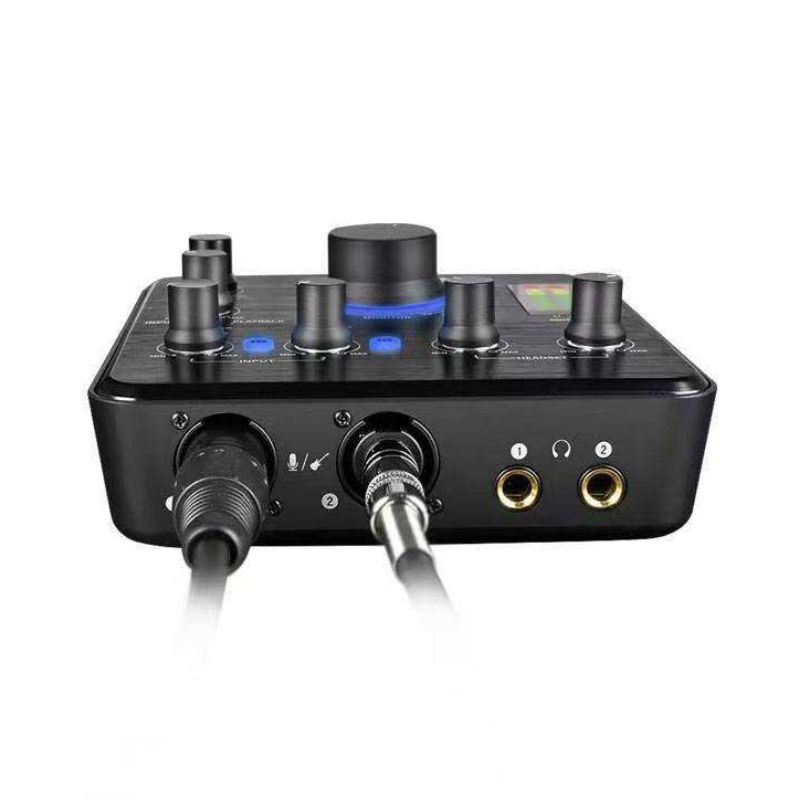

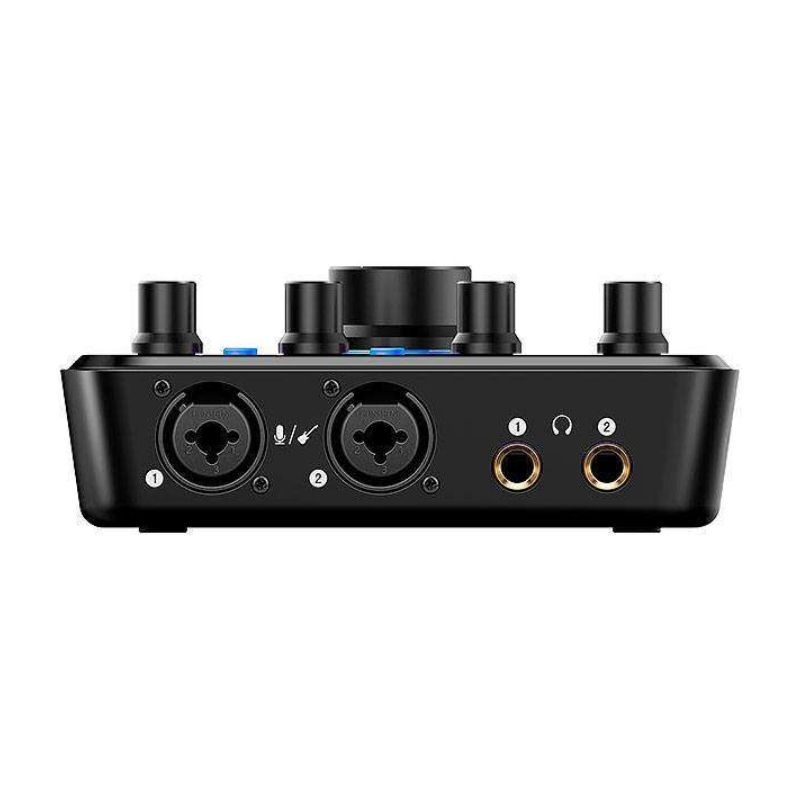

• Dual Combo Inputs: Equipped with two high-quality preamplifiers featuring XLR / 1/4′′ combo jacks. This allows you to plug in two professional condenser microphones (with $48\text{ V}$ phantom power) or instruments like electric guitars and keyboards.

• OTG & Mobile Integration: The “OTG” functionality allows for high-definition, lossless digital recording and streaming directly to a smartphone via Type-C, bypassing the noisy analog hardware of most phones.

• WHQL Certified Drivers: The drivers are Microsoft certified for stability, ensuring that the device won’t crash during long live-streaming sessions.

• Independent Hardware Controls: Features dedicated physical knobs for:

  • Input Gain (Channel 1 & 2)

  • Headphone Volume (Two separate jacks)

  • Speaker Output

  • Recording/Webcast Level

Technical Specifications

The MX630 acts as a bridge between professional studio gear and modern streaming platforms:

• Professional Outputs: Includes two balanced 1/4′′ TRS outputs to connect to studio monitors, reducing hum and interference.

• Dual Monitoring: Two 1/4′′ headphone jacks allow two people (e.g., a host and a guest) to monitor the audio independently.

• Loopback Function: Essential for streamers, it allows you to route your computer’s audio (music, game sound, or Discord) back into your live stream mix without complex software workarounds.

• Multi-Device Streaming: You can stream to a PC via USB and a mobile phone via the $3.5\text{ mm}$ jack simultaneously.

  Ideal Applications

• Professional Webcasting: Best for influencers who need to mix high-quality vocals with computer audio and background music in real-time.

• Home Studio Recording: A solid entry into “pro” recording, compatible with VST plugins for adding real-time reverb or autotune via a computer.

• Podcasting: Excellent for two-person setups where each person needs their own professional mic and headphone control.

• Network Karaoke: Tailored for high-end singing apps that require low latency and high-fidelity vocal capture.

Notable Difference

Unlike the SC-M1, the MX630 does not have built-in battery power or physical “laughter/applause” trigger pads. It is a more serious tool focused on sound quality and driver stability rather than built-in sound effects.
