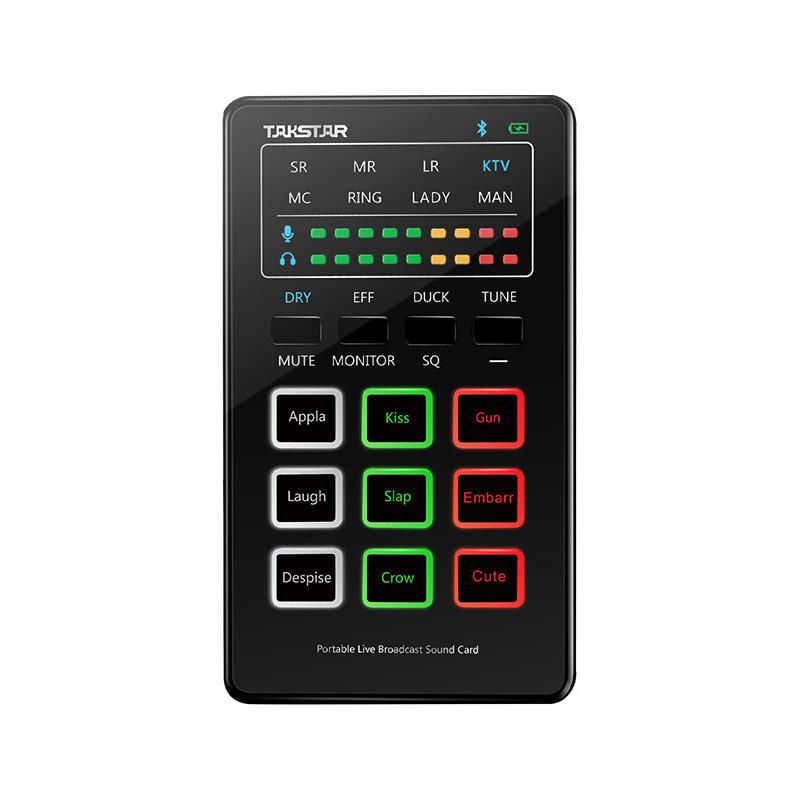

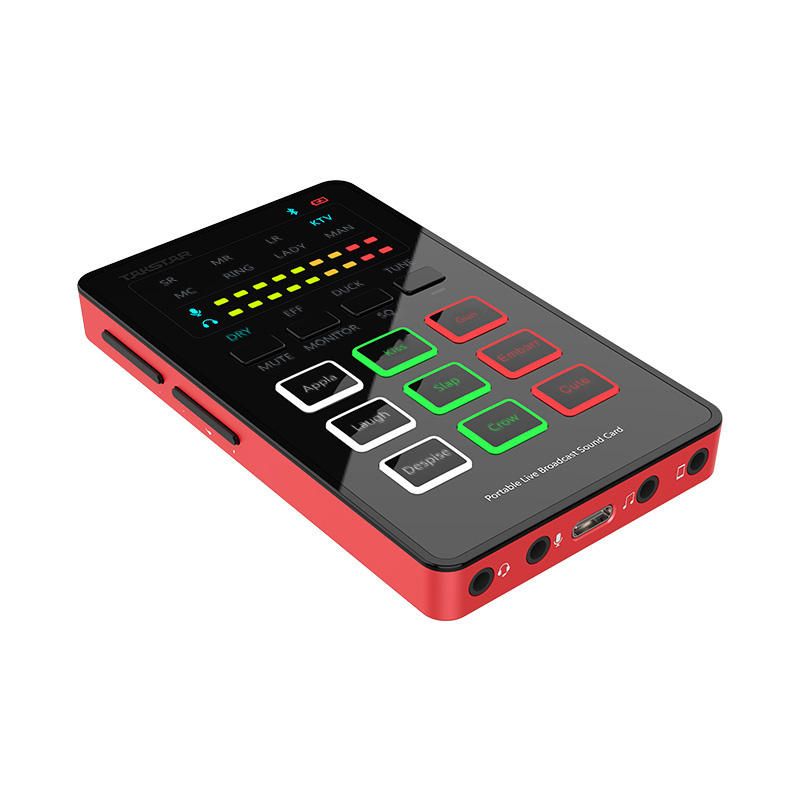

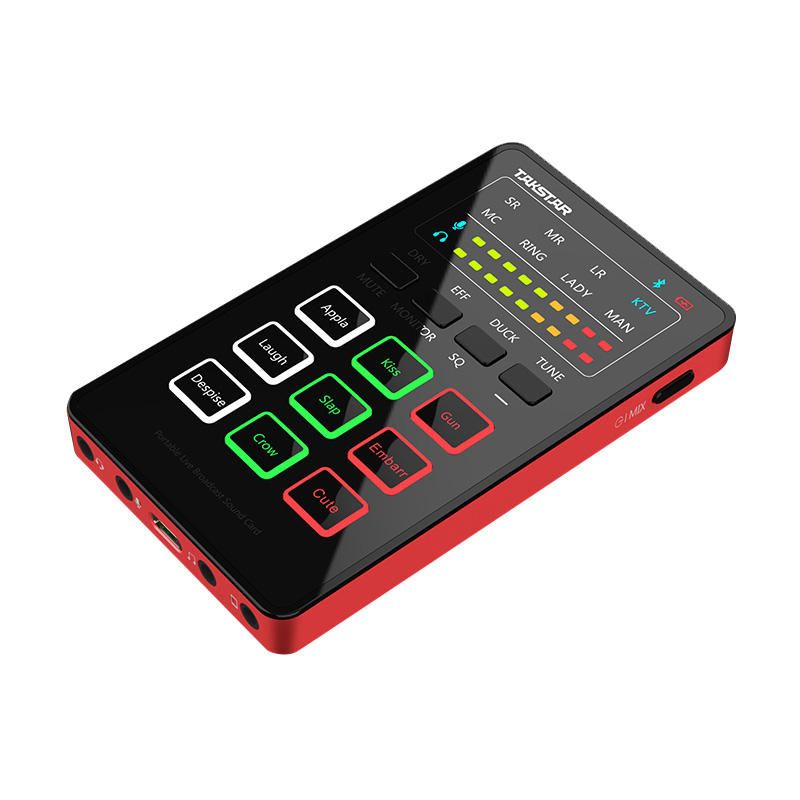

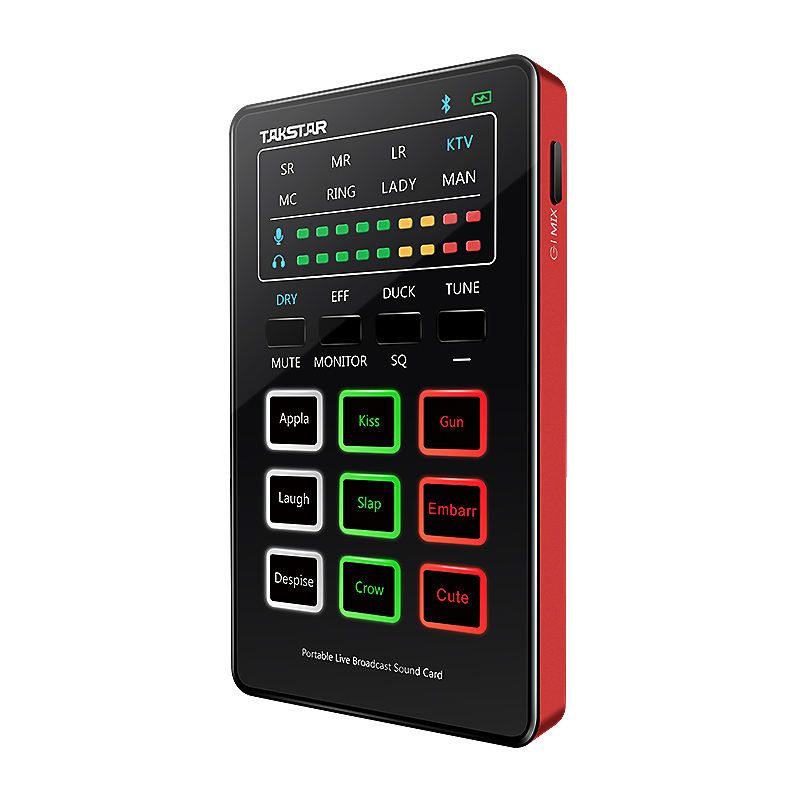

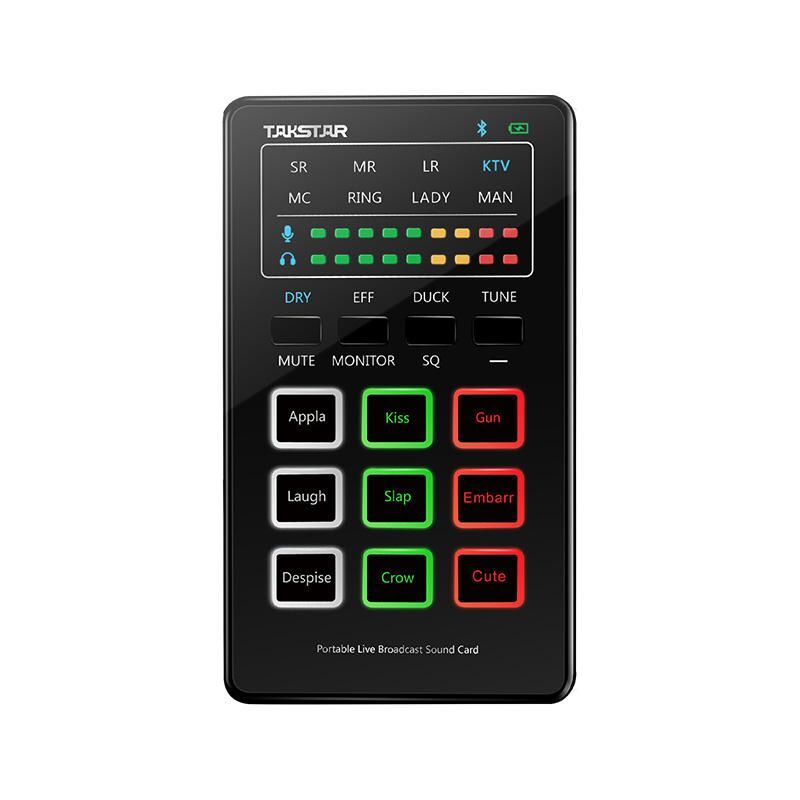

Takstar MX1mini Audio Interface Live Sound Card

The Takstar MX1mini is an ultra-portable, pocket-sized audio interface specifically designed for mobile live streaming, “K-song” (karaoke apps), and quick podcasting setups. It is significantly smaller and more simplified than the MX1 Pro, prioritizing portability and ease of use for smartphone users.

Key Features

• Compact & Portable: It is smaller than most modern smartphones and weighs only about $115\text{ g}$, making it easy to carry in a pocket for outdoor streams.

• Built-in DSP Effects:

  • 9 Sound Effects: Includes presets like reverb, voice changes (male to female, female to male), and specialized modes like KTV or Telephone.

  • 12-Tone Autotune: Allows for real-time pitch correction in various keys (C, Db, D, Eb, etc.) at the push of a button.

• Bluetooth Accompaniment: You can pair your phone wirelessly via Bluetooth to play background music or karaoke tracks, eliminating the need for an extra “accompaniment” cable.

• One-Button Utilities:

  • Ducking: Automatically lowers background music when you start talking.

  • Noise Reduction: Uses a smart algorithm to filter out ambient room noise (fans, hums).

  • Singing/Chatting Mode: Instantly toggles the EQ and reverb settings to suit either a musical performance or a standard conversation.

Technical Specifications

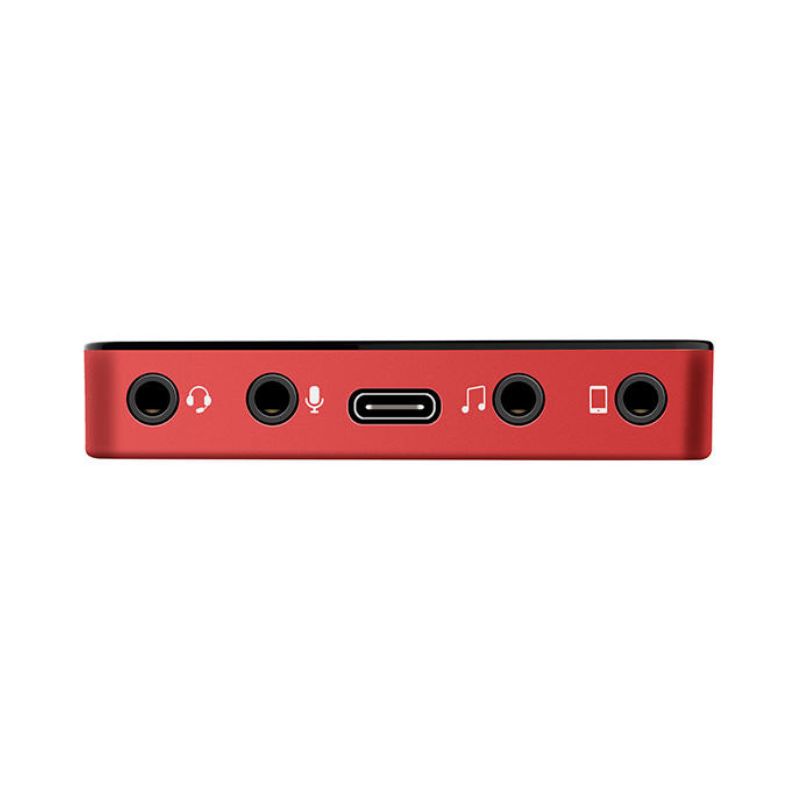

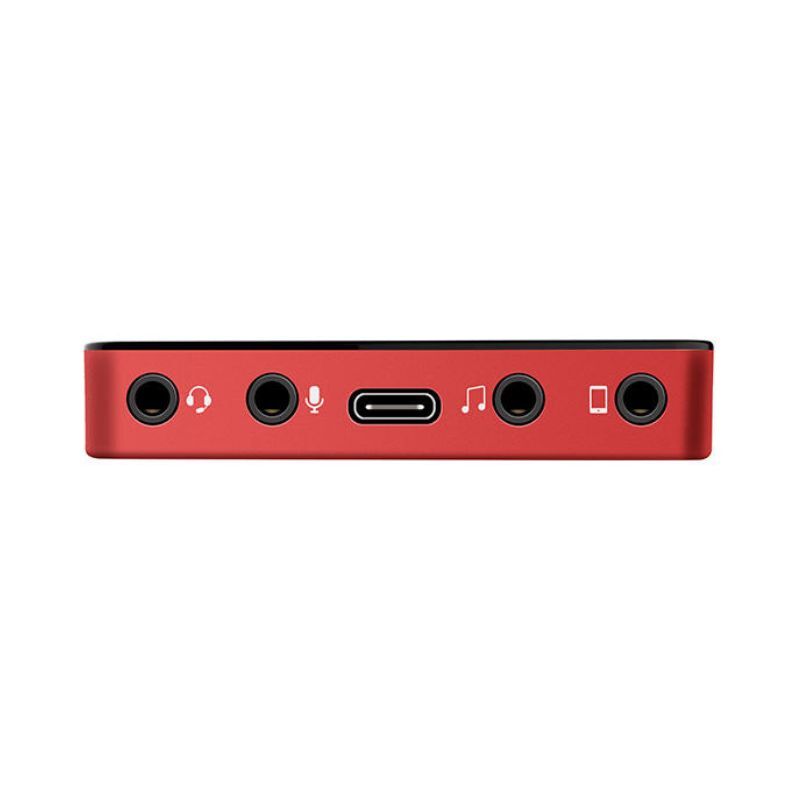

The MX1mini uses $3.5\text{ mm}$ TRRS jacks for all audio connections. Unlike the larger MX1 Pro, it does not have an XLR input.

1. Mic Jack ($3.5\text{ mm}$): Designed for lavalier mics or 3.5mm condenser mics.

   • Note: If you want to use a professional XLR studio mic (like the AKG P120 we discussed), you will need an external 48V phantom power supply.

2. Headset Jack ($3.5\text{ mm}$): For real-time, zero-latency monitoring of your voice and effects.

3. Phone Jack ($3.5\text{ mm}$): Connects to your “live” phone to send the audio to TikTok, YouTube, or Facebook.

4. Accompaniment Jack ($3.5\text{ mm}$): A wired alternative to Bluetooth for music input.

5. Type-C Port: Used for charging or connecting to a PC/Mac to use the device as a standard computer sound card.

Ideal Applications

• Mobile Live Streaming: Perfect for TikTok or Instagram Live creators who want better sound than a phone mic but don’t want a bulky setup.

• Outdoor Busking/Vlogging: The internal battery and tiny footprint make it ideal for recording while traveling.

• Smartphone Karaoke: Specifically designed for apps like Smule, StarMaker, and Wesing.

Important Limitation

The MX1mini does not provide 48V phantom power. If you plan on using a high-end condenser microphone (like the AKG P120 or P220), the MX1mini will not be able to power it on its own. You would be better suited with the Takstar MX1 Pro or the MX630, which have built-in 48V support.
