PreSonus Eris E5 Two-Way Active 5.25″ Studio Monitor Pair

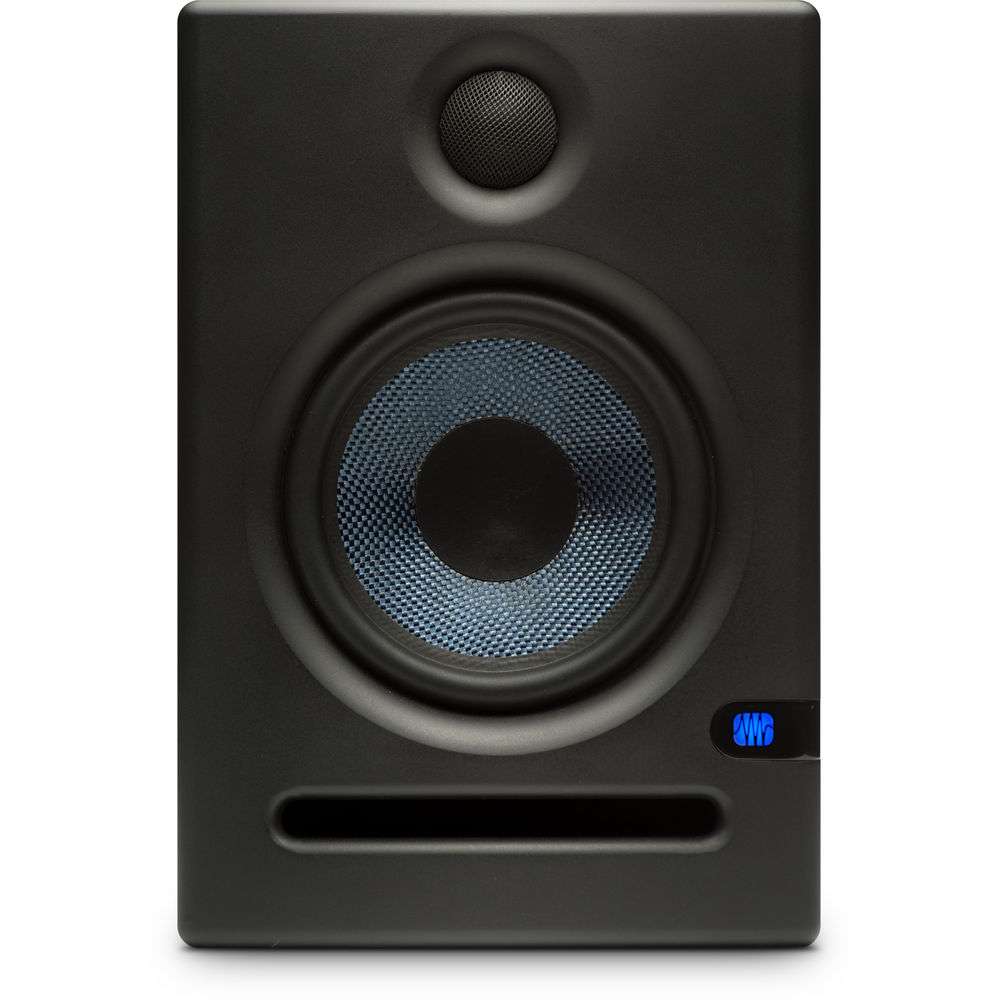

The Eris E5 Two-Way Active 5.25″ Studio Monitor from PreSonus delivers an accurate response with tight bass and a clear upper end.
Key Features
- 5.25″ Kevlar Woofer and 1″ Tweeter
- 70W Class AB Biamplification
- 102dB Max SPL
- Resonance-Suppressing Internal Bracing
- Acoustic Tuning Controls
- Acoustic Space Settings
- Accepts XLR, 1/4″ TRS and RCA Inputs
- Output Current and Overheat Protection
₨ 114,000
Description
The PreSonus Eris E5 XT 5 25 Studio Monitor from PreSonus delivers an accurate response with tight bass and a clear upper end. The Kevlar low frequency transducers, low-mass silk-dome tweeters and responsive Class AB amplification combine with acoustic-adjustment controls to create a versatile and adaptable listening system.
The PreSonus Eris E5 XT 5 25 Studio Monitor begins with a front-ported enclosure made of vinyl-laminated MDF. It features a 5.25″ Kevlar low-frequency driver mated with a 45W, Class AB amplifier.
For the highs, Eris employs a 1″ silk-dome tweeter powered by a 35W, Class AB amplifier. The E5 outputs a clean 102 dB peak SPL. Its frequency response is rated at 64Hz to 22kHz.
The PreSonus Eris E5 XT 5 25 Studio Monitor provides a balanced XLR, a balanced ¼” TRS, and an unbalanced RCA line-level input. Once you’re plugged in, set the Input Gain and you’re ready to go!

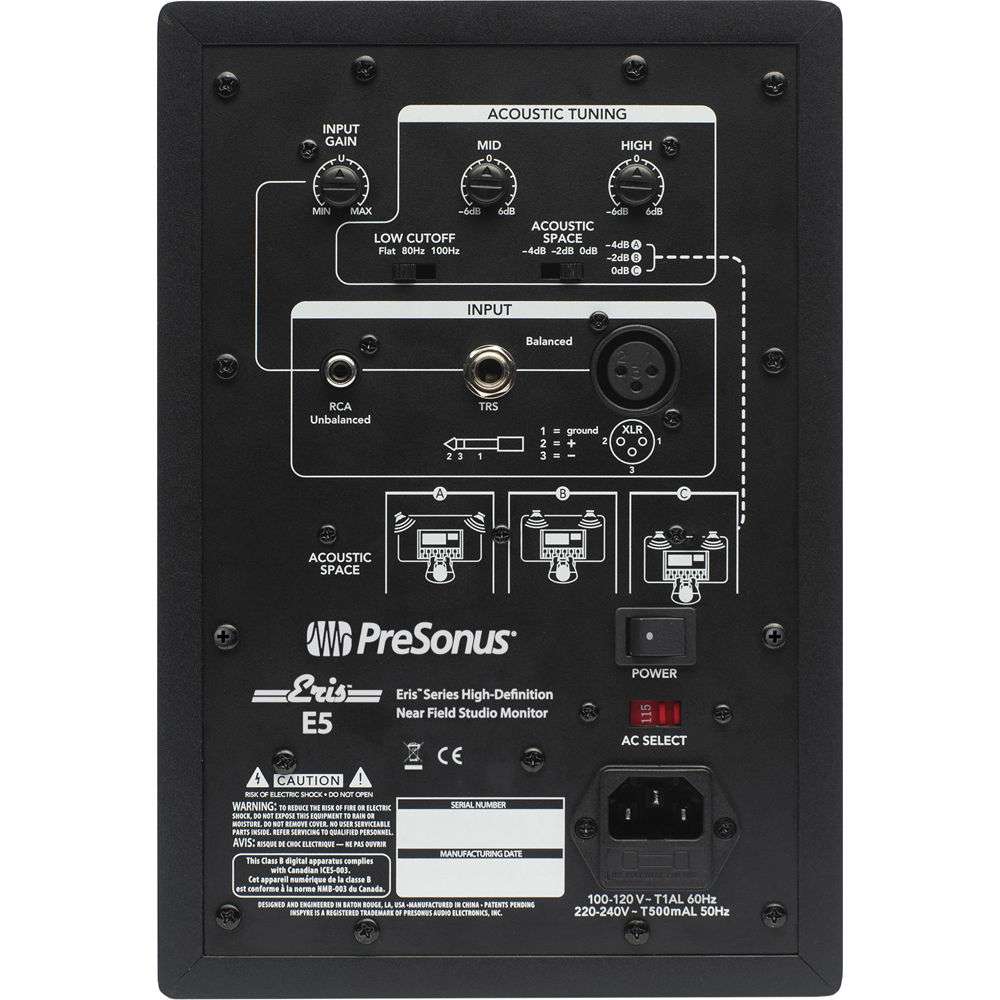

Acoustic Tuning Controls
The PreSonus Eris E5 XT 5 25 Studio Monitor provides three EQ controls in its Acoustic Tuning section: High, Mid, and Low Cutoff. These controls enable you to fine-tune the monitors to your space. The Low control also is useful when using the E5 with a subwoofer.
The High control is a shelving filter that boosts or cuts all frequencies above 4.5kHz by as much as 6dB. The Mid control is a mid-frequency peak filter that boosts or cuts frequencies centered at 1kHz and extending about one octave above and below that frequency.
The Low Cutoff control rolls off frequencies below either 80 or 100Hz at a slope of 12dB/octave. This control is especially useful if you also have a connected subwoofer.
Acoustic Space Control
A three-position Acoustic Space switch controls a second-order, low shelving filter that cuts frequencies below 800 Hz by either 2 or 4dB to compensate for the boundary bass boost that occurs in close proximity to walls or corners.
Thorough Protection Circuitry
RF shielding protects against radio frequencies that could be introduced to the signal and become audible. Eris monitors also provide overheat protection, current-output limiting and subsonic protection. “Soft startup” amplifiers prevent damaging pops from sounding through the speakers when you power them up.
INPUTS 1 x XLR balanced
1 x 1/4″ TRS balanced
1 x RCA phono unbalanced
FREQUENCY RESPONSE 53 Hz to 22 kHz
CROSSOVER FREQUENCY 3 kHz
LF AMPLIFIER 45W
HF AMPLIFIER 35W
MAXIMUM SPL 102 dB @ 1 meter
LOW FREQUENCY DRIVER 5.25″ (13.34 cm) Kevlar
HIGH FREQUENCY DRIVER 1″ (2.54 cm) silk dome
INPUT IMPEDANCE 10kΩ
VOLUME CONTROL A-type taper
EQUALIZATION HF Control: -6, 0, +6 dB; continuously variable
MF Control: -6, 0, +6 dB; continuously variable
Low Cut Filter: Flat, 80 Hz, 100 Hz; switchable
Acoustic Space Control: Flat, -2 dB, -4 dB; switchable
PROTECTION RF interference
Output-current limiting
Over-temperature
Turn-on/off transient
Subsonic filter
External mains fuse
ENCLOSURE MATERIAL Vinyl-laminated MDF
POWER REQUIREMENTS 100 to 120V or 220 to 240V, 50/60 Hz
DIMENSIONS (W X D X H) 7 x 7.68 x 10.24″ (178 x 195 x 260 mm)
WEIGHT 10.2 lb (4.63 kg)
PACKAGING INFO –
PACKAGE WEIGHT 11.8 lb
BOX DIMENSIONS (LXWXH) 13.1 x 11.6 x 9.9″
SIZE 5″
