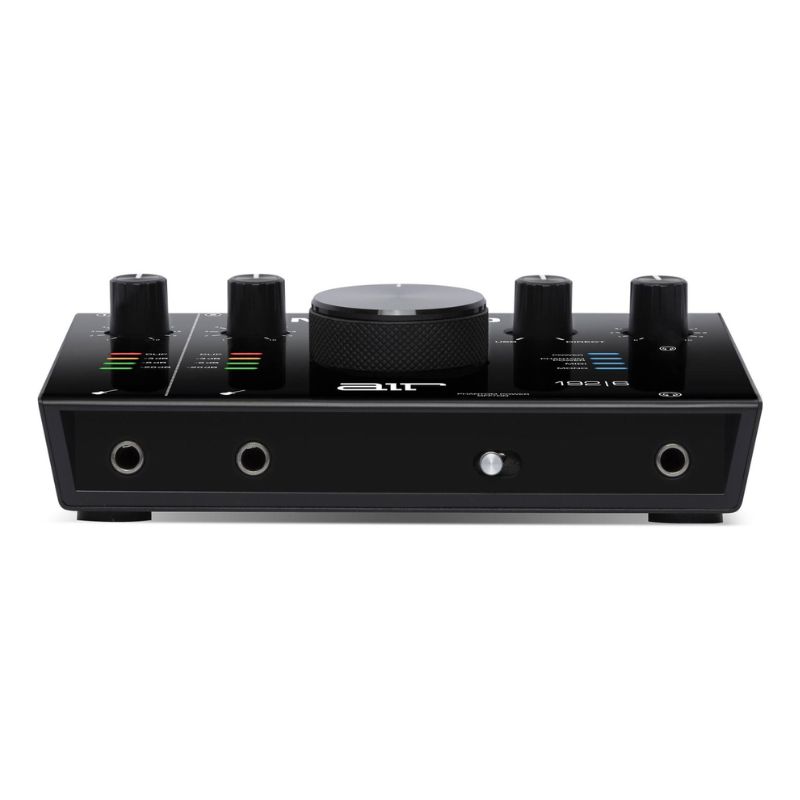

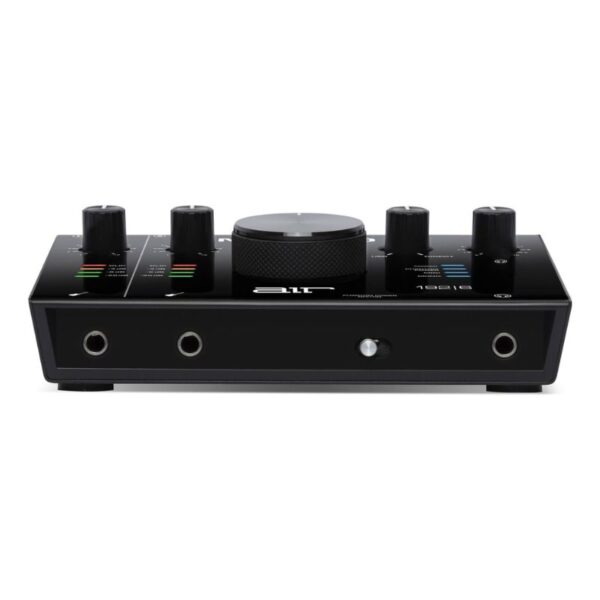

M-Audio AIR 192|6 USB 2×2 Audio Interface with MIDI

• 24-bit /192 kHz resolution for professional recording and monitoring
• High-speed USB circuitry
• Fastest connection with a round-trip latency of only 2.59ms (dependent on buffer settings, and computer hardware)
• Transparent Crystal preamps and pristine A/D converters for remarkable audio recording quality
• VU LED meters for dialing in the optimum level
• Flexible Inputs: Two XLR / 1/4″ TRS combo or 1/4″ instrument inputs
• Use any combination of TRS combo or 1/4″ instrument input on the two channels (2 x combo, 2 x instrument, or one of each)
• 5-pin MIDI input/output for connecting virtually any external MIDI gear
• Stereo 1/4″ TRS outputs
• One 1/4″ headphone out with independent level control

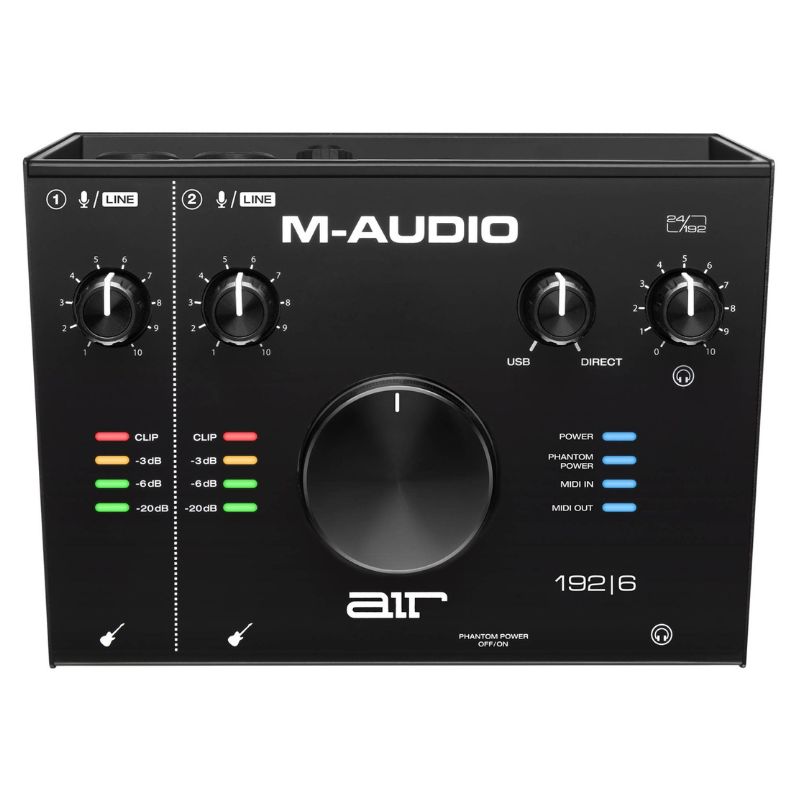

• Rugged metal chassis with large central control for easy volume adjustment
• USB / monitor mix knob for balancing between the input signal and the computer signal

• Pro Tools First | M-Audio Edition
• Eleven Lite
• AIR Creative FX Collection
• AVID Effects Collection
• AIR Music’s Instrument Collection:
  • DB-33 Tonewheel Organ
  • Boom – Drum Machine
  • Vacuum – Monophonic Tube Synth
  • Mini Grand – Acoustic Pianos
  • Xpand! 2 – Multitimbral Workstation
• Ableton Live Lite
• Touch Loops 2GB Loop Library

ADDITIONAL INFORMATION

WEIGHT 2.84 kg

BRAND M-Audio

INTERFACE –

CHANNELS OF I/O Analog:
2 Inputs / 3 Outputs at 192 kHz

MAX SAMPLE RATE/RESOLUTION 192 kHz / 24-Bit

DISPLAY AND INDICATORS 2 x Multi-Segment LED Meters (Clip, Input Level)
4 x LEDs (MIDI, Phantom Power, Power)

CONNECTIVITY –

HOST CONNECTION 1 x USB Type-C (USB 2.0)

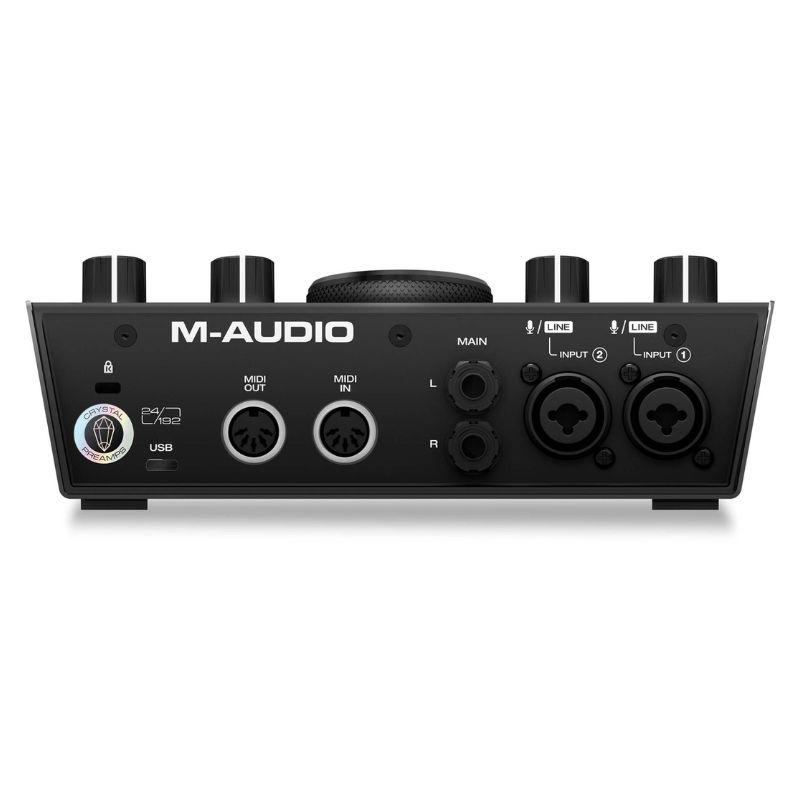

ANALOG I/O 2 x Combo XLR-1/4″ TRS Balanced Mic/Line Input
2 x 1/4″ TS Unbalanced Hi-Z Input
2 x 1/4″ TRS Balanced Line Output
1 x 1/4″ TRS Unbalanced Headphone Output

PHANTOM POWER +48 V, Selectable On/Off

DIGITAL I/O None

MIDI I/O 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out

MEMORY CARD SLOT None

PERFORMANCE –

FREQUENCY RESPONSE Hi-Z Inputs, Line Inputs, Mic Inputs, Outputs:
20 Hz to 20 kHz +0.1 dB
20 Hz to 20 kHz +0.05 dB
20 Hz to 20 kHz +0.05 dB
20 Hz to 20 kHz +0.05 dB

GAIN RANGE Mic/Line Inputs:
55 dB
Hi-Z Inputs:
24 dB

MAX INPUT LEVEL Mic Inputs:
1.5 dBu
Line Inputs:
16 dBu
Hi-Z Inputs:
6 dBu

MAX OUTPUT LEVEL Balanced Outputs:
+13 dBu (Balanced)

DYNAMIC RANGE Mic Inputs:
104 dBA
Line Inputs:
100 dBA
Hi-Z Inputs:
100 dBA
Outputs:
106 dBA

IMPEDANCE Hi-Z Inputs:
1 Megohm (Unbalanced)
Headphone Outputs:
10 Ohms

THD+N Mic Inputs:
0.002%
Line Inputs:
0.002%
Hi-Z Inputs:
0.005%
Outputs:
0.005%
Headphone Outputs:
0.005%

SNR Mic Inputs:
104 dBA
Line Inputs:
101 dBA
Hi-Z Inputs:
98 dBA
Line Outputs:
106 dBA

EIN Mic Inputs:
-128 dBu (A-Weighted)

DIGITAL AUDIO –

SAMPLE RATES 192 kHz (AD/DA Conversion)

BIT DEPTH 24-Bit (AD/DA Conversion)

LATENCY Zero-Latency Direct Monitoring2.59 ms at 192 kHz (Dependent on Buffer Size)

SYNC SOURCES None

COMPATIBILITY –

OS COMPATIBILITY macOS 10.8 or Later
Windows 7 or Later

POWER –

POWER REQUIREMENTS USB Bus-Power

PHYSICAL –

ANTI-THEFT FEATURES Kensington Security Slot

DIMENSIONS 8 x 6 x 2.76″ / 203.2 x 152.4 x 70.1 mm

WEIGHT 2.1 lb / 1.0 kg

PACKAGING INFO –

PACKAGE WEIGHT 3.135 lb

BOX DIMENSIONS (LXWXH) 13.1 x 10.1 x 4.9″

INPUTS / OUTPUTS 2×2

NO OF PREAMPS 2

IN THE BOX

• M-Audio AIR 192|6 USB 2×2 Audio Interface with MIDI
• USB Type-C to USB Type-C Cable
• USB Type-C to USB Type-A Cable
• Software Download Card
