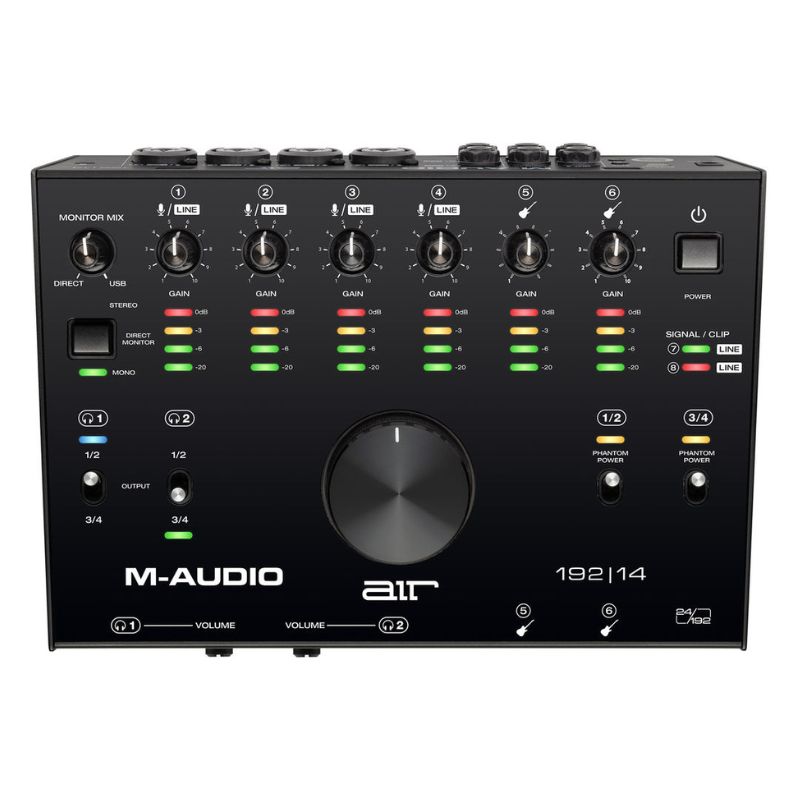

M-Audio AIR 192|14 Desktop 8×4 USB Type-C Audio/MIDI Interface

Description

STUDIO-QUALITY RECORDING FOR MUSICIANS AND SMALL BANDS

With the M Audio Air 192 4 8×4 USB Audio MIDI Interface, you can create 24-bit / 192 kHz studio-quality recordings with an intuitive and easy-to-use audio interface.

The AIR 192|14 enables you to record up to eight channels at once with its four dedicated XLR-1/4″ balanced combo mic/line inputs (+48V phantom power is switchable for inputs 1-2 and 3-4), two fixed-level 1/4″ line inputs, and two front-panel 1/4″ instrument inputs that have a specially designed gain and impedance stage to provide an accurate representation of a guitar or bass plugged directly into the interface.

CRYSTAL PREAMPS AND HIGH-RESOLUTION CONVERTERS

M Audio Air 192 4 8×4 USB Audio MIDI Interface engineers designed their Crystal preamps to provide you with a transparent low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended.

The M-Audio AIR 192|4 8×4 Desktop USB Audio MIDI Interface incorporates pristine A/D converters for 24-bit / 192 kHz resolution digital audio with a dynamic range that lets you capture every nuance and subtlety of the performance.

MIDI I/O

Space-saving 3.5mm MIDI I/O ports and the included 3.5mm to 5-pin MIDI adapters enable you to connect synths, sequencers, and other external MIDI gear, making the interface well suited for integrating MIDI gear with your DAW’s virtual instruments and composition functions.

LISTEN WITHOUT LATENCY

When recording, you want to focus on capturing that perfect moment, and getting the best performance out of your artist and talent. You don’t want to be bogged down by clicks, pops, or latency.

The M-Audio AIR 192|4 8×4 Desktop USB Audio MIDI Interface not only features a high-speed USB connection for providing low round-trip latency (2.59 ms) between your machine and your hardware, but it also features monitor mix control for listening directly to the source inputs in mono or stereo, providing you with zero-latency technology.

Dual Headphone Outputs and Line Outs

The M Audio Air 192 4 8×4 USB Audio MIDI Interface sports stereo 1/4″ main outputs, stereo fixed-level 1/4″ line outputs, two independent 1/4″ headphone outputs, and separate level controls for the main and headphone outputs.

Each headphone out also has a switch to source it from output channels 1-2 or 3-4, ideal for setting up different headphone mixes for multiple artists.

EXTERNAL POWER SUPPLY

The M Audio Air 192 4 8×4 USB Audio MIDI Interface includes an external power supply and two USB cables (one USB Type-C and one USB Type-C to Type-A) to ensure proper operation with your Mac or Windows computer.

The interface is class-compliant for Macs and utilizes a downloadable driver for Windows.

PREMIUM SOFTWARE SUITE

• The M Audio Air 192 4 8×4 USB Audio MIDI Interface comes complete with an expansive software package—two DAWs, 40 effect plug-ins, virtual instruments, and loops—to kickstart your musical creations.
• Pro Tools | First M-Audio Edition: Audio/MIDI recording software with unlimited buses, Elastic Time, Elastic Pitch, offline bouncing, and 1GB of free cloud storage space
• Ableton Live Lite: Popular audio/MIDI performance and production software
• Eleven Lite: Guitar amp simulator with modern and vintage amps and cabs
• AIR Creative FX Collection: 20 effects including reverbs, equalizers, delays, filters, and more
• AVID Effects Collection: 20 effects including compression, delay, reverb, and more
• AIR Music’s Instrument Collection: DB-33 tone wheel organ, Hybrid 3.0 virtual synthesizer, Boom drum machine, Strike drum/arranger instrument, Vacuum monophonic tube synth, Mini Grand acoustic piano, and
• Xpand!2 multitimbral workstation
• Touch Loops 2GB Loop Library

ADDITIONAL INFORMATION

BRAND M-Audio

FORM FACTOR Tabletop

DISPLAY 6 x Multi-Segment LED Meter

CHANNELS OF I/O Analog:
8 Inputs / 4 Outputs at 192 kHz

MAX SAMPLE RATE/RESOLUTION 192 kHz / 24-Bit

INPUT LEVEL ADJUSTMENT 6 x Knob

EXPANSION SLOTS None

PAD None

GAIN/TRIM RANGE Mic Inputs:
62 dB
Line Inputs:
61 dB
Hi-Z Inputs:
59 dB

HIGH-PASS FILTER None

SOLO/MUTE None

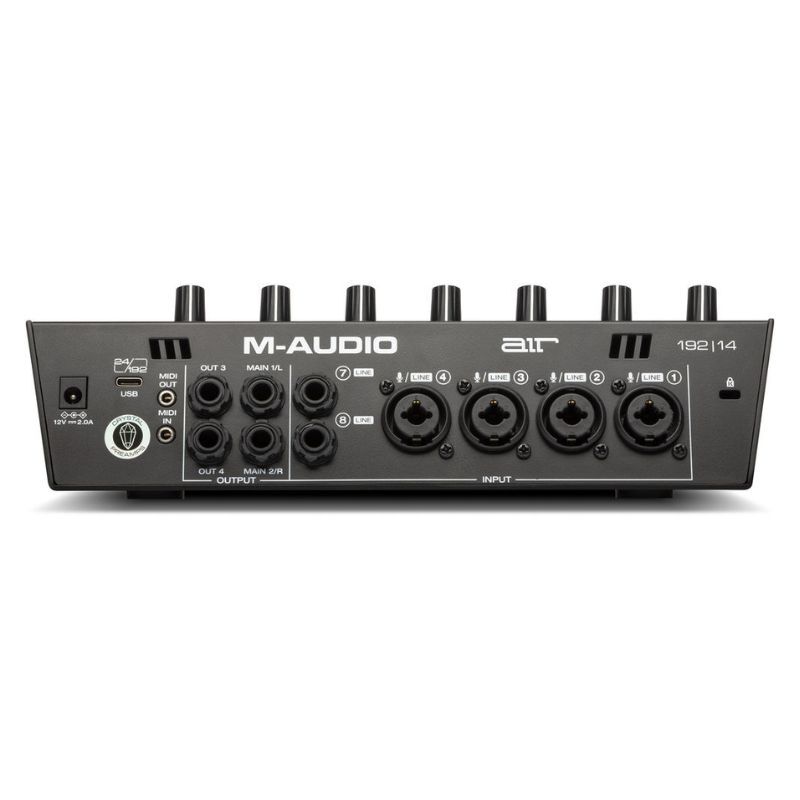

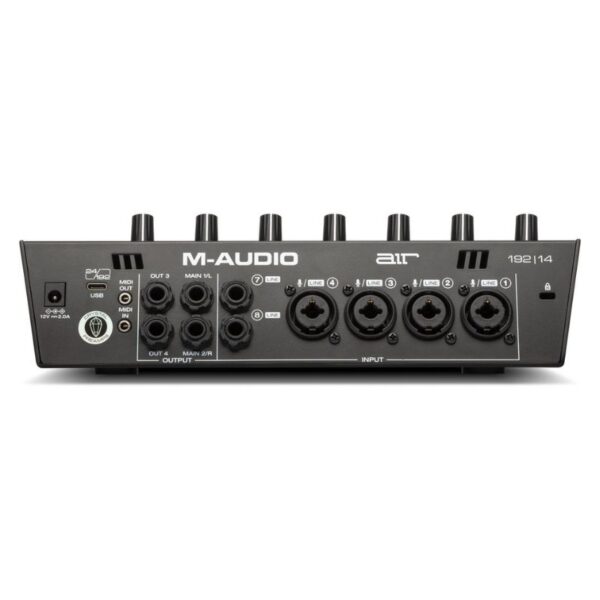

ANALOG AUDIO I/O 4 x Combo XLR-1/4″ TRS Balanced Mic/Line Input

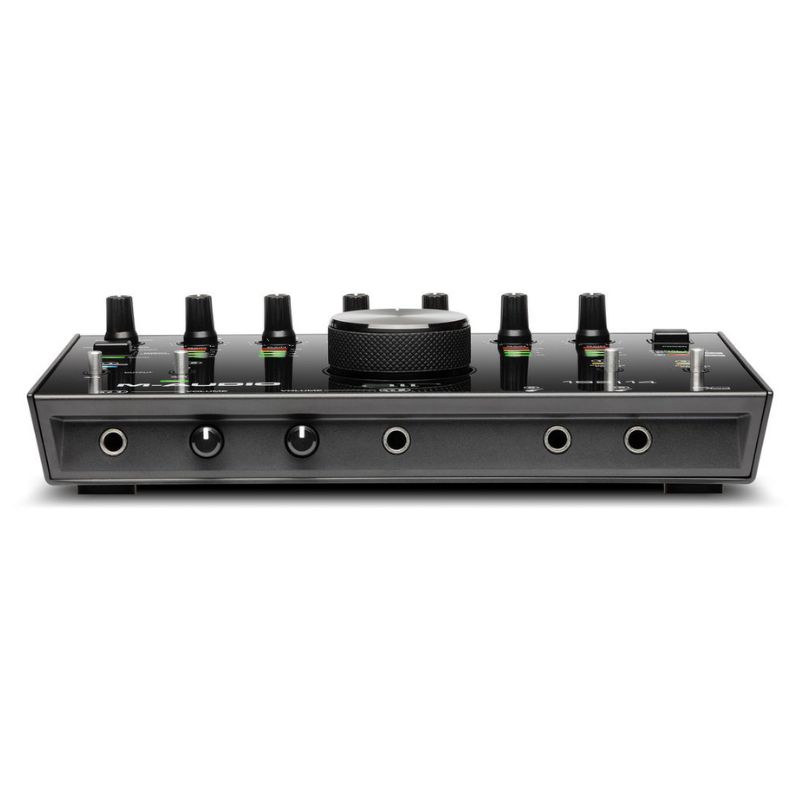

2 x 1/4″ TS Unbalanced Hi-Z Input (Front Panel)
2 x 1/4″ TRS Balanced Line Input
4 x 1/4″ TRS Balanced Line Output
2 x 1/4″ TRS Unbalanced Headphone Output (Front Panel)

PHANTOM POWER 48 V, Selectable On/Off (on 4 Channels)

DIGITAL AUDIO I/O None

HOST CONNECTION / USB 1 x USB Type-C (Class-Compliant USB 2.0)

USB (NON-HOST) None

SYNC I/O None

NETWORK I/O None

MIDI I/O 1 x 1/8″ / 3.5 mm TRS Input (DIN 5-Pin Adapter Included)
1 x 1/8″ / 3.5 mm TRS Output (DIN 5-Pin Adapter Included)

WIRELESS CONNECTIVITY None

PERFORMANCE –

FREQUENCY RESPONSE Mic Inputs:
20 Hz to 20 kHz ±0.2 dB
Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.1 dB

MAX INPUT LEVEL Mic Inputs:
+14 dBu
Combo XLR-1/4″ Line Inputs:
+30 dBu
1/4″ Line Inputs:
+17 dBu
Hi-Z Inputs:
+16 dBu

MAX OUTPUT LEVEL Line Outputs:
+17 dBu

HEADPHONE OUTPUT POWER 160 mW into 32 Ohms (Max, 1% THD)

IMPEDANCE Hi-Z Inputs:
1 Megohm (Unbalanced)
Headphone Outputs:
32 to 600 Ohms

DYNAMIC RANGE Mic/Line Inputs:
113 dB (A-Weighted)
Hi-Z Inputs:
110 dB (A-Weighted)
Monitor Outputs:
112 dB (A-Weighted)
Line Outputs:
113 dB (A-Weighted)
Headphone Outputs:
111 dB (A-Weighted)

THD+N Mic Inputs:
0.003%
Line/Hi-Z Inputs:
0.001% (1 kHz, at -1 dBFS)
Line/Monitor Outputs:
0.002% (1 kHz, at -1 dBFS)
Headphone Outputs:
0.002% (1 kHz, at -1 dBFS, 32-Ohm Load)

EIN Mic Inputs:
-137 dBu A-Weighted
-129 dBu (150-Ohm Source)

DIGITAL AUDIO –

SAMPLE RATES 192 kHz (AD/DA Conversion)

SAMPLE RATE CONVERSION None

BIT DEPTHS 24-Bit (AD/DA Conversion)

LATENCY 2.59 ms at 192 kHz (Dependent on Buffer Size, Input to Output)

SYNC SOURCES Internal

MEMORY CARD SLOT None

COMPATIBILITY –

OS COMPATIBILITY macOS 10.8 or Later
Windows 7 or Later

INCLUDED SOFTWARE Pro Tools First M-Audio Edition
Ableton Live Lite

COMPATIBLE SOFTWARE (NOT INCLUDED) Any Core Audio (Mac) Compliant Software

SUPPORTED DRIVERS/API & PLUG-INS macOS Class-Compliant (No Driver Needed)
Windows Driver Downloadable from Manufacturer

MOBILE DEVICE COMPATIBILITY None

REQUIRED HARDWARE Available USB 2.0 Port or USB Type-C port
USB Cable (Included)

INTERNET CONNECTION Required for Registration, Software/Driver Download

POWER –

POWER REQUIREMENTS AC/DC Power Adapter (Included)

AC/DC POWER ADAPTER 12 VAC at 2 A, Center-Positive (Included)

PHYSICAL –

ANTI-THEFT FEATURES Kensington Security Slot

DIMENSIONS 10.2 x 7.3 x 3.6″ / 25.9 x 18.5 x 9.1 cm

WEIGHT 3.9 lb / 1.8 kg

PACKAGING INFO –

PACKAGE WEIGHT 5.865 lb

BOX DIMENSIONS (LXWXH) 13.6 x 9.3 x 5.8″

INPUTS / OUTPUTS 8×4

NO OF PREAMPS 6
