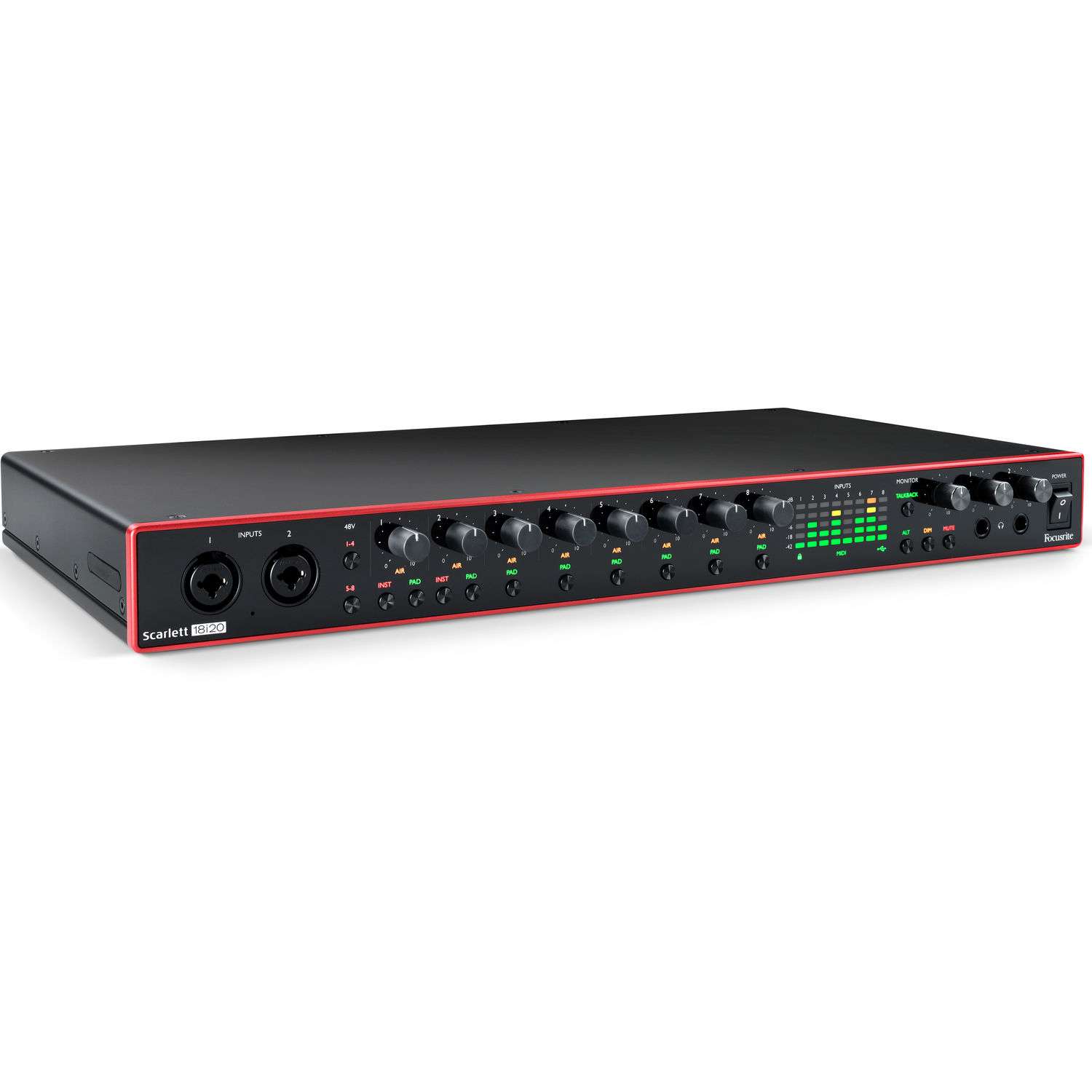

Focusrite Scarlett 18i20 18×20 USB Audio Interface 3rd Generation
Focusrite Scarlett 18i20 3rd Gen USB Audio Interface, for Producers, Musicians, Bands, Content Creators — High-Fidelity, Studio Quality Recording, and All the Software You Need to Record
₨ 205,000
Description
Focusrite Scarlett 18i20 Usb Audio Interface Ideal for bands and recording engineers, the third-generation Focusrite Scarlett 18i20 Usb Audio Interface is a rack-mountable 18×20 USB audio interface offering high-performance hardware, comprehensive I/O, customizable mic tone, and a creative software bundle.
The eight improved Scarlett microphone preamps feature switchable phantom power, input pads, and selectable Air circuits, which add brightness based on Focusrite’s legendary ISA preamplifier.
The first two XLR-1/4″ combo inputs can accept unbalanced instrument level from guitars and basses, and synthesizers and drum machines, or balanced line level from a mixing console or outboard preamps, while combo inputs 3-8 support mic- or line-level sources.
Utilize the dual ADAT optical input and output ports to interface external 8-channel AD/DA converters (available separately). The Focusrite Scarlett 18i20 Usb Audio Interface 24-bit / 192 kHz converters ensure that signals are captured and reproduced with detail and clarity.
With four balanced 1/4″ line/monitor outputs, six additional 1/4″ line outs, two 1/4″ stereo headphone jacks, and independent control of the headphone and speaker volume settings, the Focusrite Scarlett 18i20 Usb Audio Interface can simultaneously feed multiple monitoring systems and outboard effects processors.
Plus, the onboard talkback feature and built-in talkback mic streamline the task of communicating with your artists during recording sessions. Traditional 5-pin MIDI I/O is provided for seamless integration of MIDI equipment such as a keyboard or sound module, and S/PDIF coaxial ports allow proper routing of stereo digital gear.
The Focusrite Scarlett 18i20 Usb Audio Interface connects to your Mac or Windows computer via USB and is powered through a connection to a standard AC outlet. The extensive software bundle includes music production software, virtual instruments, plug-in effects, loops, and more—plenty of tools to kick-start your inspiration.
FOCUSRITE SCARLETT 18I20 USB AUDIO INTERFACE FEATURES
- High-performance converters operate at up to 24-bit / 192 kHz resolution
- Eight XLR-1/4″ combo inputs with upgraded third-generation Scarlett mic preamps
- Switchable Air setting reproduces the Air effect of Focusrite’s original ISA mic preamp for recordings with enhanced brightness and openness
- Two high-impedance, high-headroom 1/4″ instrument inputs enable distortion-free recording of your guitar and bass
- Front-panel 1/4″ inputs 1-2 may be switched to accept unbalanced instrument level or balanced line level, while 1/4″ inputs 3-8 accept line level in Focusrite Scarlett 18i20 Usb Audio Interface.
- Independent gain knobs and multi-segment LED input metering make it easy to set input levels
- Selectable per-channel pads attenuate the input signal to inhibit distortion
- One pair of virtual loopback inputs allows you to capture a stereo feed of any combination of hardware input and software playback channels, making podcasting, live streaming, and sampling tasks easier
- 10 balanced 1/4″ TRS line outputs—line outs 1-4 serve as monitor outputs with anti-thump technology
- Two stereo 1/4″ headphone outputs
- Independent volume controls for headphone and monitor outputs
- Front-panel monitor control with main/alt speaker switching, dim, and mute
- Onboard talkback functionality with built-in talkback microphone
- Traditional 5-pin MIDI I/O permits straightforward connectivity for a MIDI keyboard, synthesizer, or sound module
- S/PDIF coaxial I/O assures simple integration of other digital equipment such as a DJ mixer, media player, or external converter
- Dual ADAT optical inputs and outputs support eight channels of digital I/O at up to 96 kHz
- BNC output provides a stable word clock signal for synchronization of external digital equipment such as other audio interfaces or a digital mixing console
- Durable housing occupies 1 RU of rack space
- Connects via USB to your computer
- AC powered via included IEC cable
BUNDLED SOFTWARE
- Ableton Live Lite music production software
- Pro Tools | First Focusrite Creative Pack
- Free 3-month Splice Sounds subscription with new Splice accounts
- Focusrite Red 2 & Red 3 Plug-In Suite
- A choice of one of four XLN Audio Addictive Keys virtual instruments
- Softube Time & Tone Bundle
- Access to the Focusrite Plug-In Collective
BRAND Focusrite
MAX SAMPLE RATE/RESOLUTION 192 kHz / 24-Bit
DISPLAY AND INDICATORS 8 x Multi-Segment LED Meters (Input Level)
2 x LEDs (+48V)
2 x LEDs (Input Selection)
8 x LEDs (Pad)
1 x LED (Host Connection)
1 x LED (MIDI)
1 x LED (Output Selection)
1 x LED (Dim)
1 x LED (Mute)
HOST CONNECTION 1 x USB Type-C (USB 2.0)
ANALOG I/O 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
6 x Combo XLR-1/4″ TRS Balanced Mic/Line Input
10 x 1/4″ TRS Balanced Line Output
2 x 1/4″ TRS Unbalanced Headphone Output
PHANTOM POWER +48 V (on 8 Channels)
DIGITAL I/O 1 x RCA Coaxial / S/PDIF Input
1 x RCA Coaxial / S/PDIF Output
1 x TOSLINK / ADAT, S/MUX Input
1 x TOSLINK / S/MUX Input
1 x TOSLINK / ADAT, S/MUX Output
1 x TOSLINK / S/MUX Output
1 x BNC (Word Clock) Output
MIDI I/O 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out
MEMORY CARD SLOT None
FREQUENCY RESPONSE 20 Hz to 20 kHz ±0.1 dB
GAIN RANGE Mic/Line Inputs:
56 dB
MAX INPUT LEVEL Mic Inputs:
+9 dBu (Min Gain)
+16 dBu (Min Gain, Pad On)
Hi-Z Inputs:
+12.5 dBu (Min Gain)
+14 dBu (Min Gain, Pad On)
Line Inputs:
+22 dBu (Min Gain)
+29.5 dBu (Min Gain, Pad On)
MAX OUTPUT LEVEL Line Outputs:
+15.5 dBu (Balanced)
Headphone Outputs:
+7 dBu
DYNAMIC RANGE Mic Inputs:
111 dBA
Hi-Z Inputs:
110 dBA
Line Inputs:
110.5 dBA
Line Outputs:
108.5 dBA
Headphone Outputs:
104 dBA
IMPEDANCE Mic Inputs:
3 Kilohms
Hi-Z Inputs:
1.5 Megohms
Line Inputs:
60 Kilohms
Line Outputs:
430 Ohms
Headphone Outputs:
<1 Ohm
THD+N Mic Inputs:
< 0.0012%
Hi-Z Inputs:
< 0.03%
Line Inputs:
< 0.002%
Line Outputs:
< 0.002%
Headphone Outputs:
< 0.002%
EIN Mic Inputs:
-128 dB (A-Weighted)
SAMPLE RATES Up to 192 kHz (AD/DA Conversion)
SYNC SOURCES ADAT, Internal, S/PDIF
OS COMPATIBILITY macOS
Windows
REQUIRED HARDWARE Available USB 2.0 Port
USB Cable (Included)
INTERNET CONNECTION Required for Software/Driver Download
POWER REQUIREMENTS AC Input
AC INPUT POWER 100 to 240 VAC, 50/60 Hz
POWER CONSUMPTION 30 W
ANTI-THEFT FEATURES None
RACKMOUNT SIZE 1 RU (with Included Hardware)
DIMENSIONS 19 x 10.23 x 1.83″ / 48.26 x 25.98 x 4.65 cm
WEIGHT 7.0 lb / 3.2 kg (Without Accessories)
7.9 lb / 3.6 kg (With Accessories)
PACKAGE WEIGHT 9.8 lb
BOX DIMENSIONS (LXWXH) 23.7 x 12.8 x 3.5″
NO OF PREAMPS 4
