Description
New PSR-SX920 pushes the boundaries of Arranger Workstation sound, featuring the latest Super Articulation technologies and new Crossfade Portamento, PSR-SX series infuses your performances with expressive dynamics and emotional depth. Elevate your music with a new PSR-SX Arranger Workstation
Keyboard & Touch Response
Keys: 61 full-size keys with Organ (FSB) action and initial touch sensitivity.
Touch Response: Adjustable across five levels (Normal, Soft1, Soft2, Hard1, Hard2).
Expression Controls: Includes a joystick, two assignable control knobs, and eight assignable buttons.
Sound Engine & Voices
Tone Generation: AWM Stereo Sampling with AEM technology.
Polyphony: 128 notes.

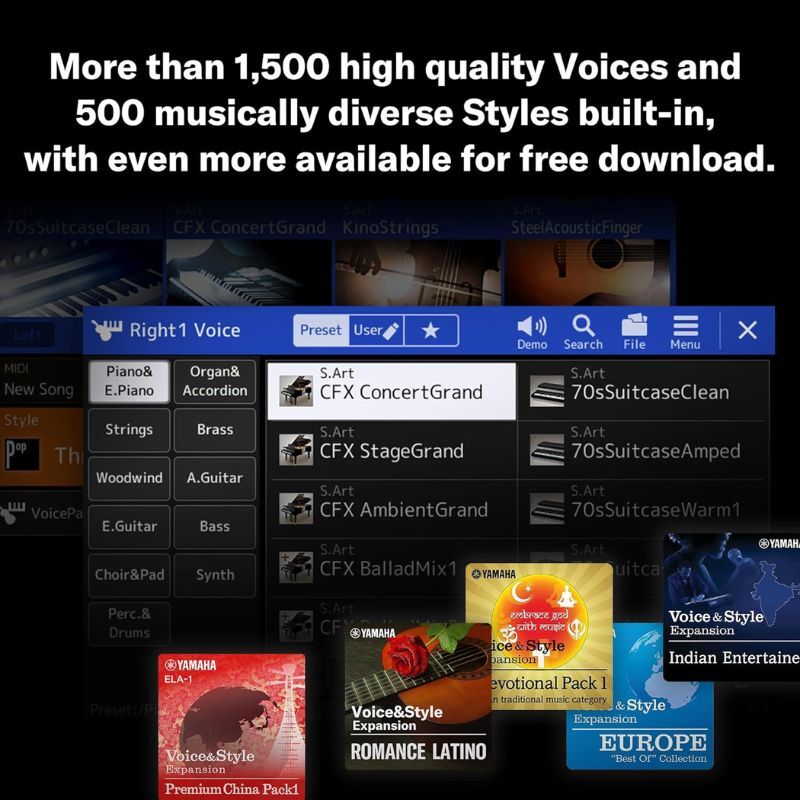

Voices: 1,587 preset voices, 63 drum/SFX kits, and 480 XG voices.
Advanced Articulation: Features Super Articulation 2 (S.Art2) and Super Articulation+ (S.Art+) for realistic instrument articulations.
Expansion: Approximately 2 GB of expansion voice memory.
Effects & Processing
Reverb: 59 preset + 30 user.
Chorus: 107 preset + 30 user.
DSP: 358 preset (with VCM) + 30 user.
Insertion Effects: 358 preset + 30 user (13 slots).
Master Compressor: 5 preset + 30 user.
Master EQ: 5 preset + 30 user.
Part EQ: 28 parts.
Vocal & Performance Features
Vocal Harmony: 54 presets and 60 user settings.
Synth Vocoder: 20 presets.
Chord Looper: Allows looping of chord progressions.
Style Dynamics Control: Adjusts the energy and dynamics of all styles using a single live controller.
Crossfade Portamento: Smooth pitch transitions between notes.
Psr Sx920 Styles & Accompaniment
Preset Styles: 575 styles, including 520 Pro styles, 49 Session styles, and 6 Free Play styles.
Fingering Modes: Single, Fingered, OnBass, Multi, AI Fingered, Full / AI Full, Smart Chord.
Style Control: INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3.
Style Dynamics Control: Adjusts the energy and dynamics of all styles using a single live controller.
Psr Sx920 Display & Interface
Display: 7-inch color TFT LCD (800 x 480 dots) with touch screen functionality.
Languages Supported: English, German, French, Spanish, Italian, Chinese.

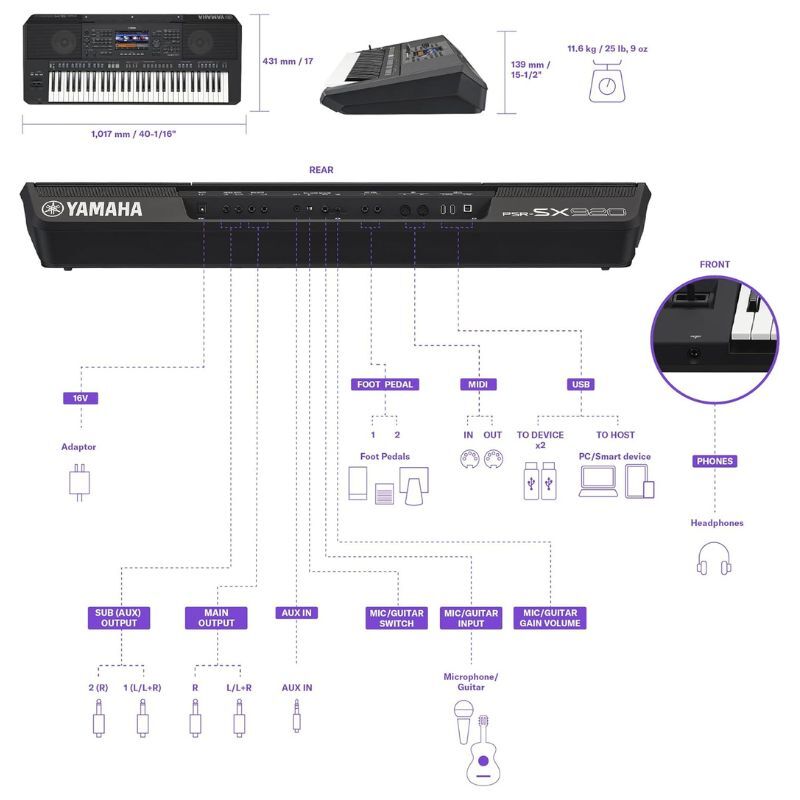

Storage & Connectivity
Internal Memory: Approximately 4 GB.
External Storage: USB flash memory via USB to DEVICE ports.

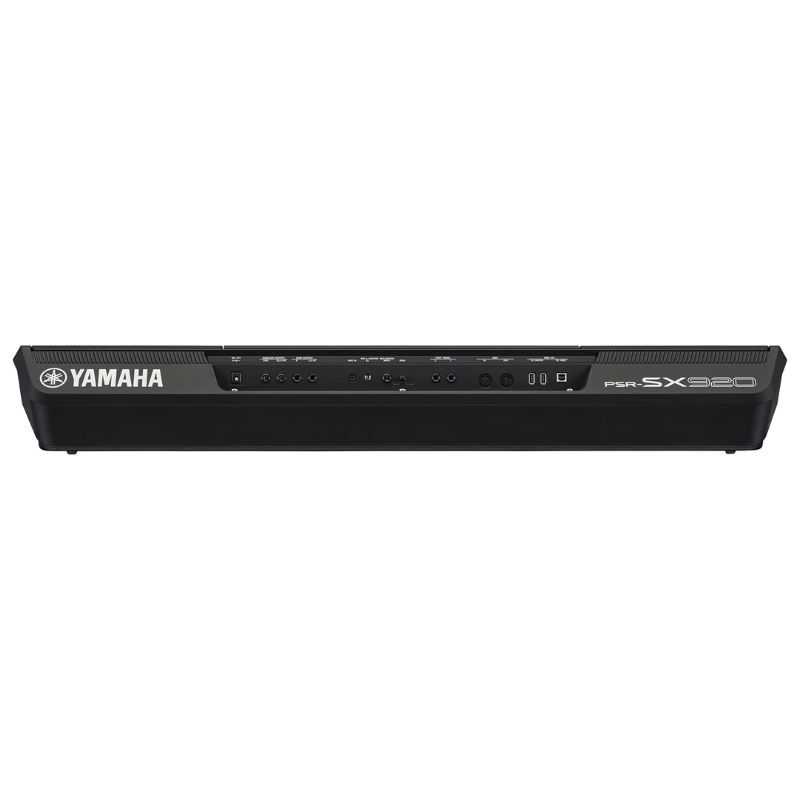

USB Ports: 1x USB-B (Host Connection), 2x USB-A (Audio Record, External Memory).
Audio Inputs/Outputs:
2x 1/4″ main outputs.
2x 1/4″ sub outputs.
1x 1/8″ / 3.5 mm TRS stereo aux input.
1x 1/4″ mic/instrument input.
MIDI I/O: 1x DIN 5-pin input, 1x DIN 5-pin output.
Pedal Support: 1x 1/4″ assignable pedal input.
Audio & Amplification
Amplifiers: 2x 15 W + 10 W.
Speakers: 13 cm FSP + 2.5 cm dome type x2.
Power & Dimensions
Power Supply: PA-300C or equivalent recommended by Yamaha.
Power Consumption: 24 W.
Auto Power Off: Yes.
Dimensions: Width: 1,017 mm (40″), Height: 139 mm (5-1/2″), Depth: 431 mm (17″).
Weight: 11.6 kg (25.57 lbs).
