Description

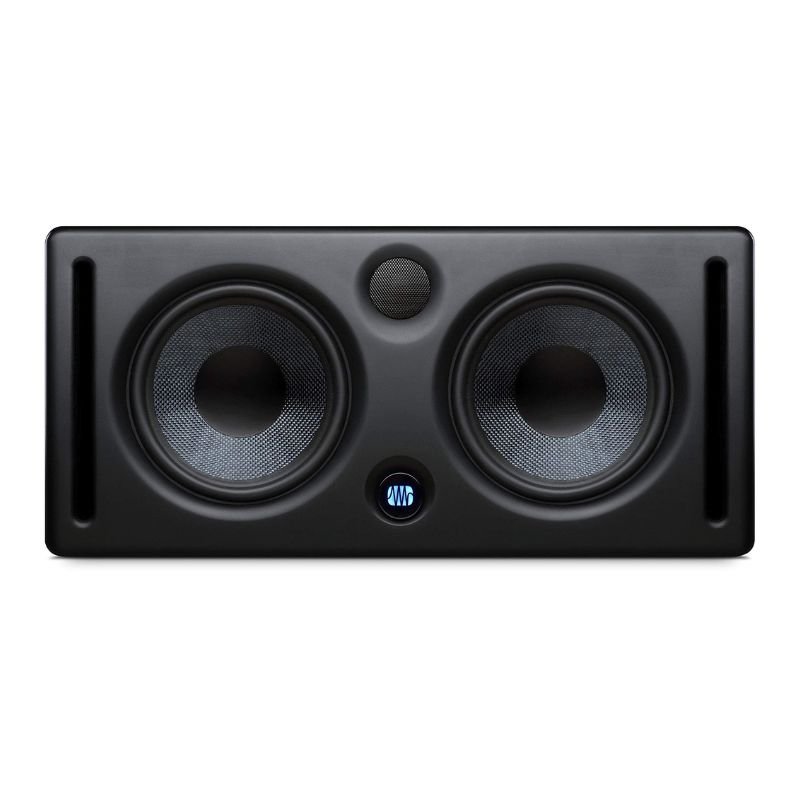

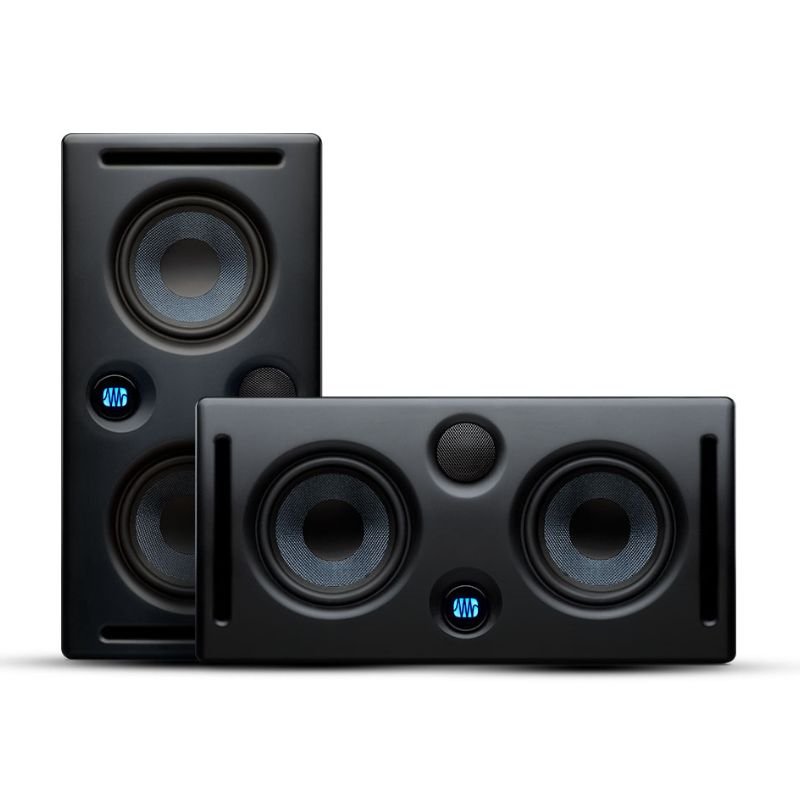

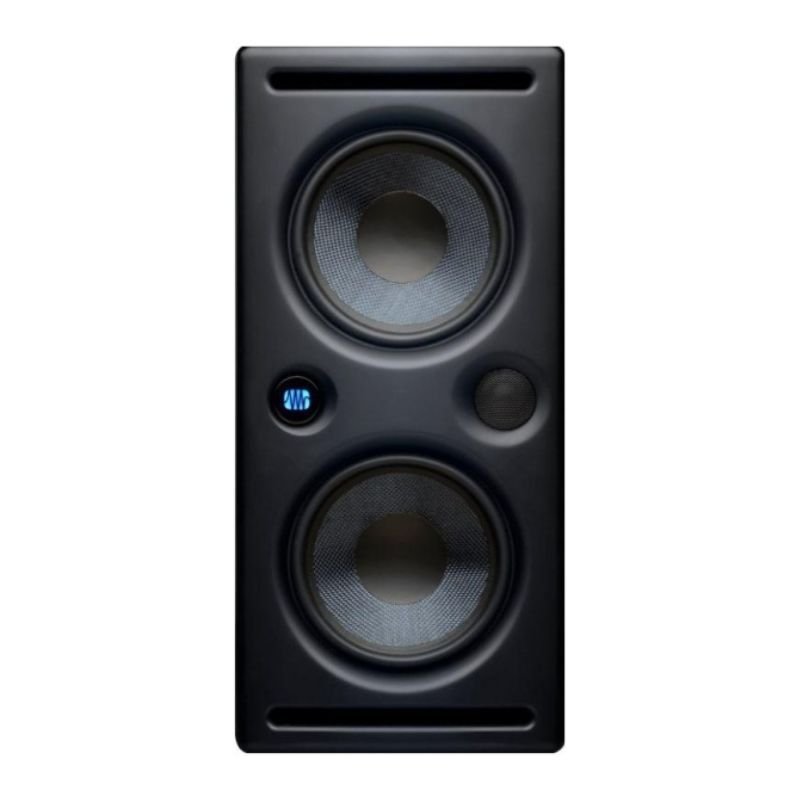

PreSonus Eris E66 Nearfield Monitor
Audio engineers, producers, and musicians looking for a professional Nearfield studio monitor with a wide stereo image will be impressed with the single PreSonus Eris E66, an active Midwoofer-Tweeter-Midwoofer (MTM) studio monitor which provides an expanded and highly accurate frequency response and a wide stereo field. The MTM design offers an improved off-axis response and spatial resolution, resulting in a more consistent listening experience, smoother frequency response, and an ultrawide, detailed stereo soundstage.
The E66 overcomes issues with early reflections by positioning a 1.25″, silk dome high-frequency driver between two 6.5″ midrange drivers. The two smaller woofers work in parallel to partially contain the dispersion of the tweeter and minimize phase displacement, resulting in a detailed stereo imaging
Technical Specifications
Frequency Response: 45 Hz – 22 kHz
Crossover Frequency: 2.4 kHz
Peak SPL: 106 dB @ 1 meter
Amplifier Power:
LF Amplifier: 80W
HF Amplifier: 65W
Input Impedance: 10 kΩ
Power Requirements: 100–120V ~50/60 Hz or 220–240V ~50/60 Hz
Cabinet Material: Vinyl-laminated medium-density fibreboard
Dimensions:
Width: 18.1″ (460 mm)
Height: 9.8″ (250 mm)
Depth: 8.5″ (215 mm)
Weight: 23.4 lbs (10.6 kg)
Driver Configuration
Low-Frequency/Midrange Drivers: Dual 6.5″
High-Frequency Driver: 1.25″ silk dome
Input Connectivity:
1 x Balanced XLR
1 x Balanced 1/4″ TRS
1 x Unbalanced RCA

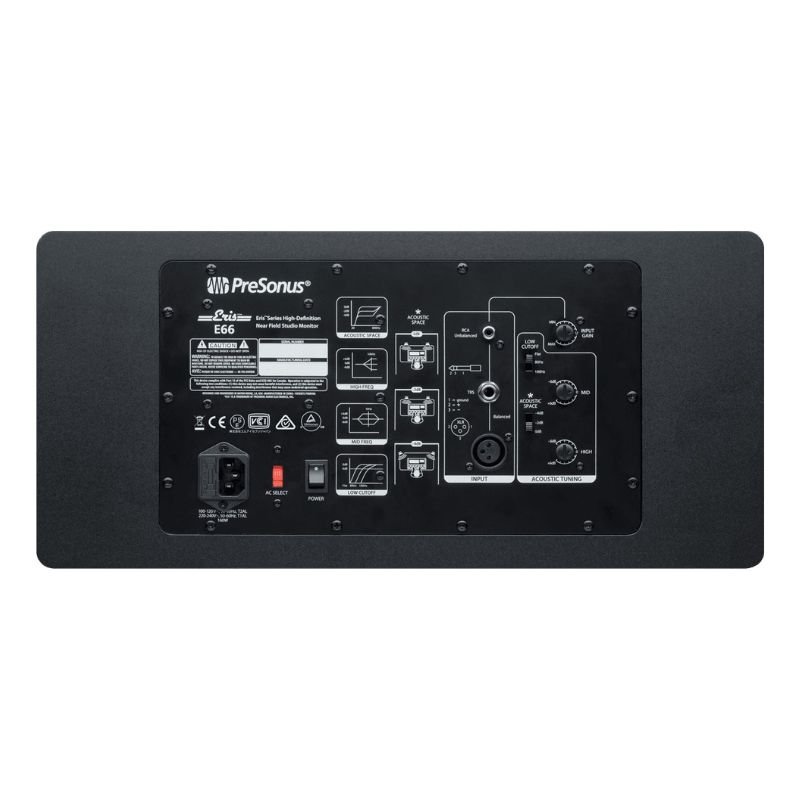

Eris E66 User Controls
Volume: A-type taper
Mid Frequency (MF) Control: Variable (-6 to +6 dB)
High Frequency (HF) Control: Variable (-6 to +6 dB)
Low Cut Filter: Flat, 80 Hz, 100 Hz
Acoustic Space: Flat, -2 dB, -4 dB
Eris E66 Protection Features
RF interference
Output-current limiting
Over-temperature
Turn-on/off transient
Subsonic filter
External mains fuse
