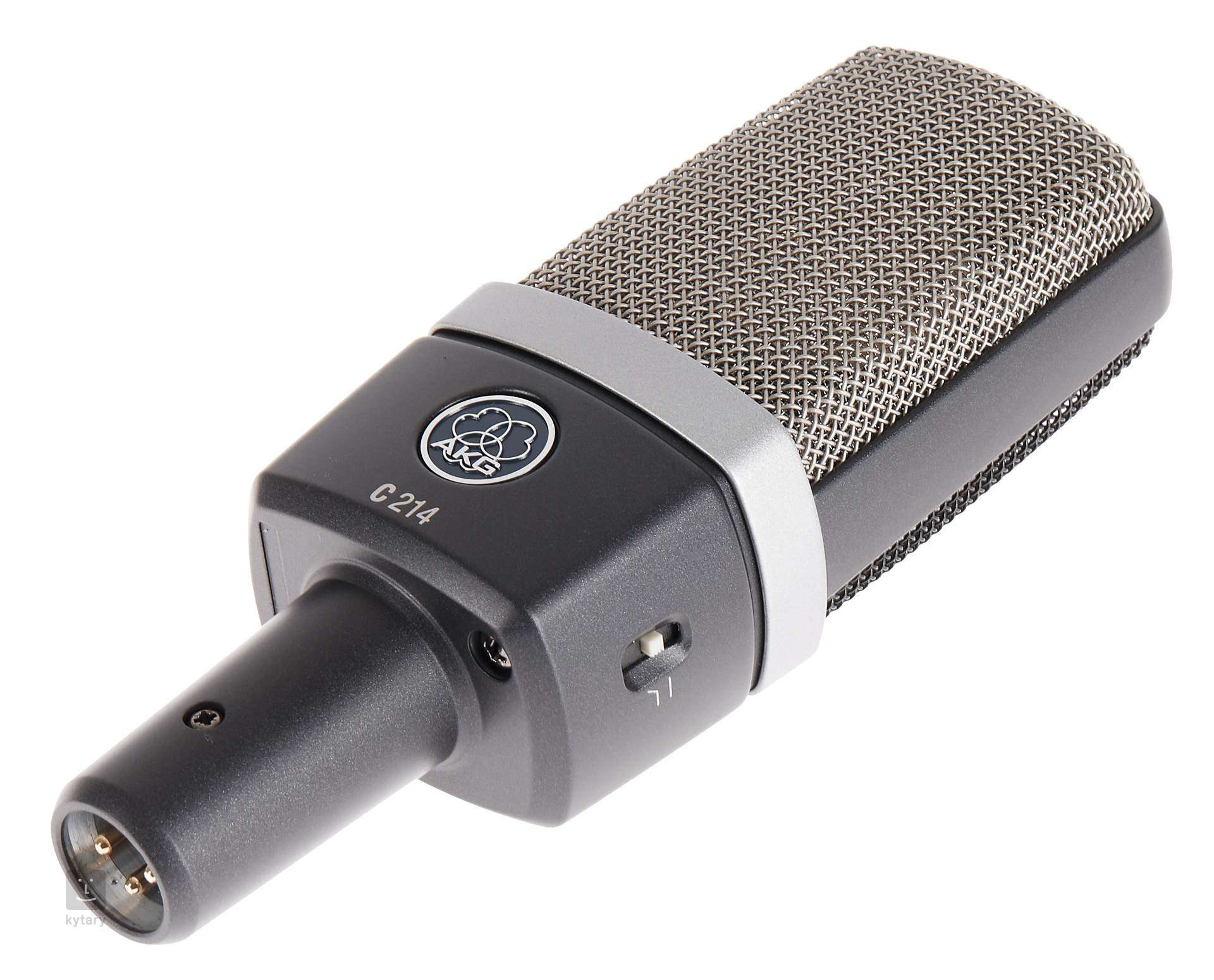

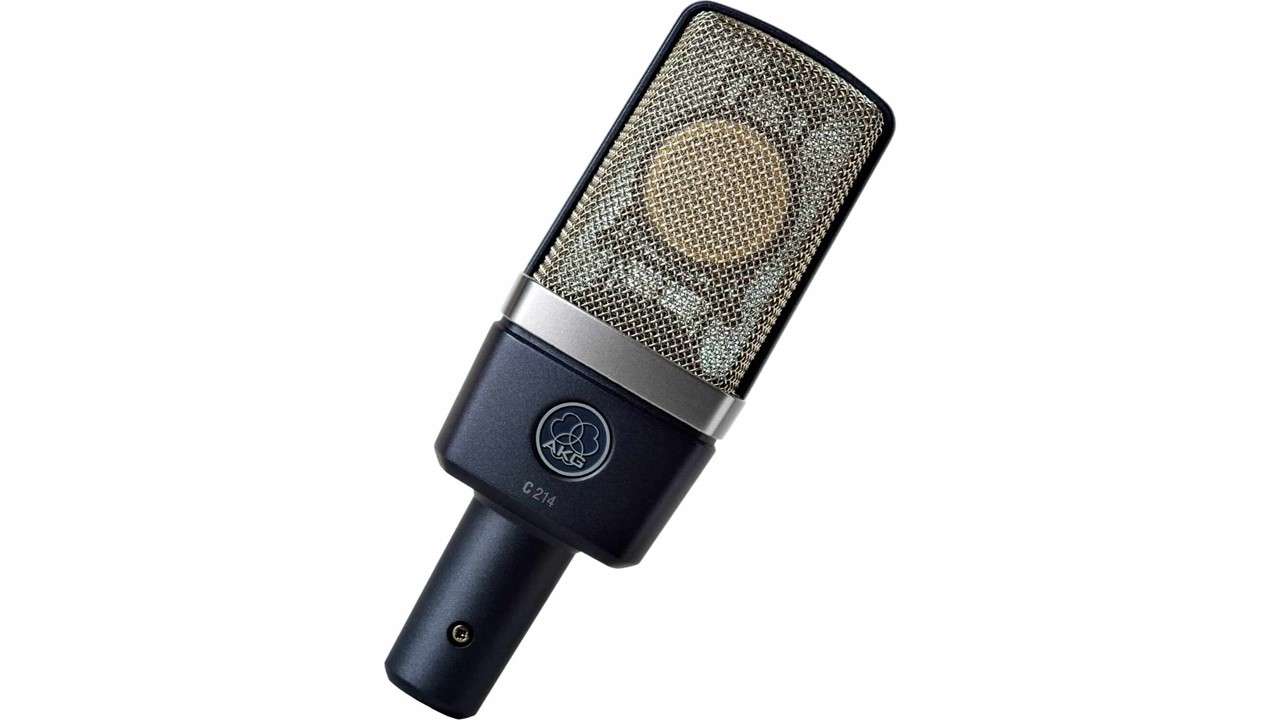

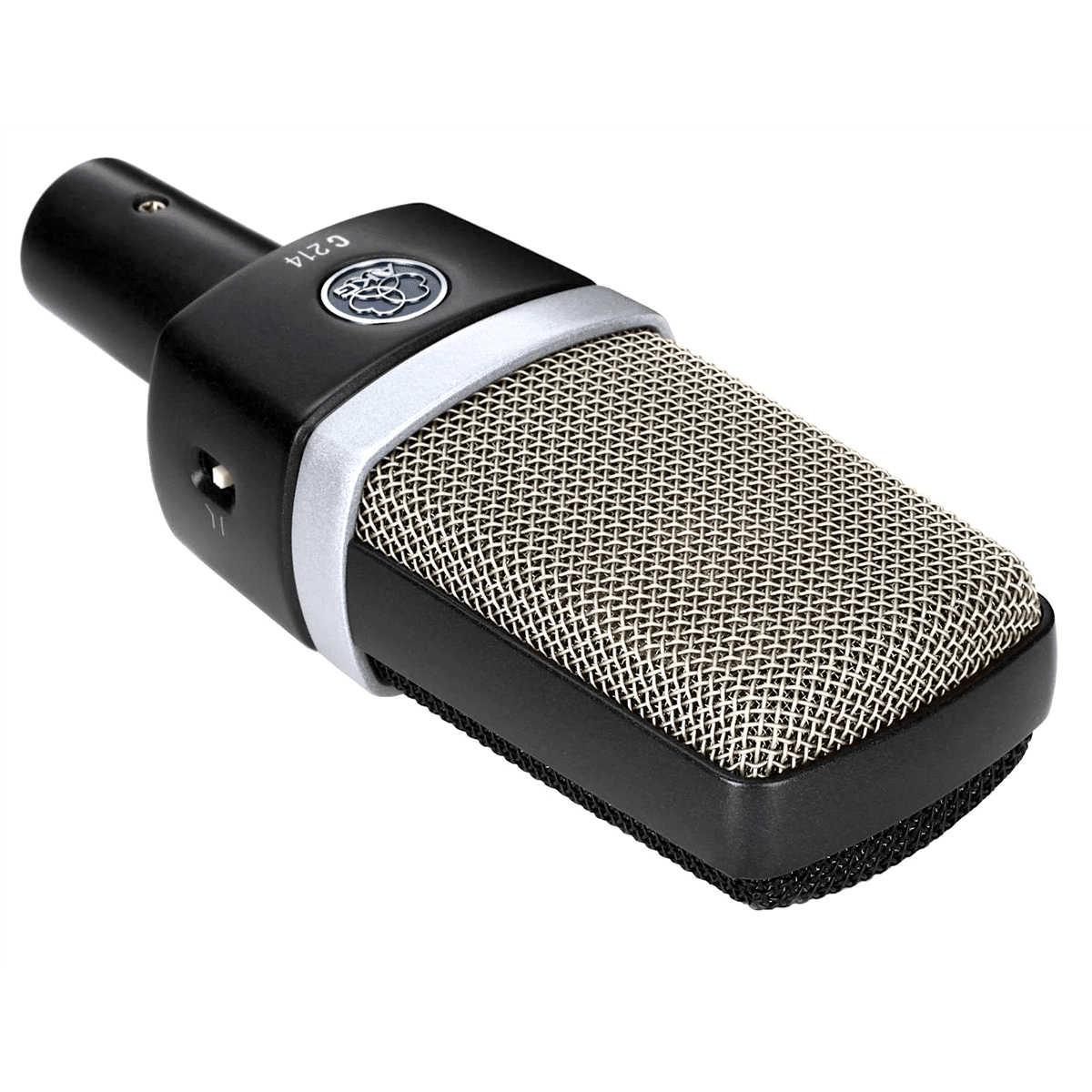

AKG C214 Large-Diaphragm Condenser Microphone

Description

The versatile C214 Large-Diaphragm Condenser Microphone is designed to record lead vocals, drums, acoustic instruments, and guitar amplifiers in the studio, on stage, or in broadcasting situations.

Conceived as a cost-effective alternative to the renowned AKG C214 Large-Diaphragm Condenser Microphone, this microphone uses the same 1″ capsule but in a single-diaphragm, cardioid-only configuration.

The transducer features technology that allows the membrane to vibrate freely, resulting in a wide frequency range and detailed transients, even at high sound-pressure levels.

With the addition of a switchable -20 dB pad and a 160 Hz low-cut filter, the AKG C214 Large-Diaphragm Condenser Microphone is well suited for close-miking applications as well as overhead placement.

The C214 is a rugged microphone built to withstand the severities of professional studios or the road. The integrated capsule suspension helps reduce mechanical noise and resonance for a cleaner sound.

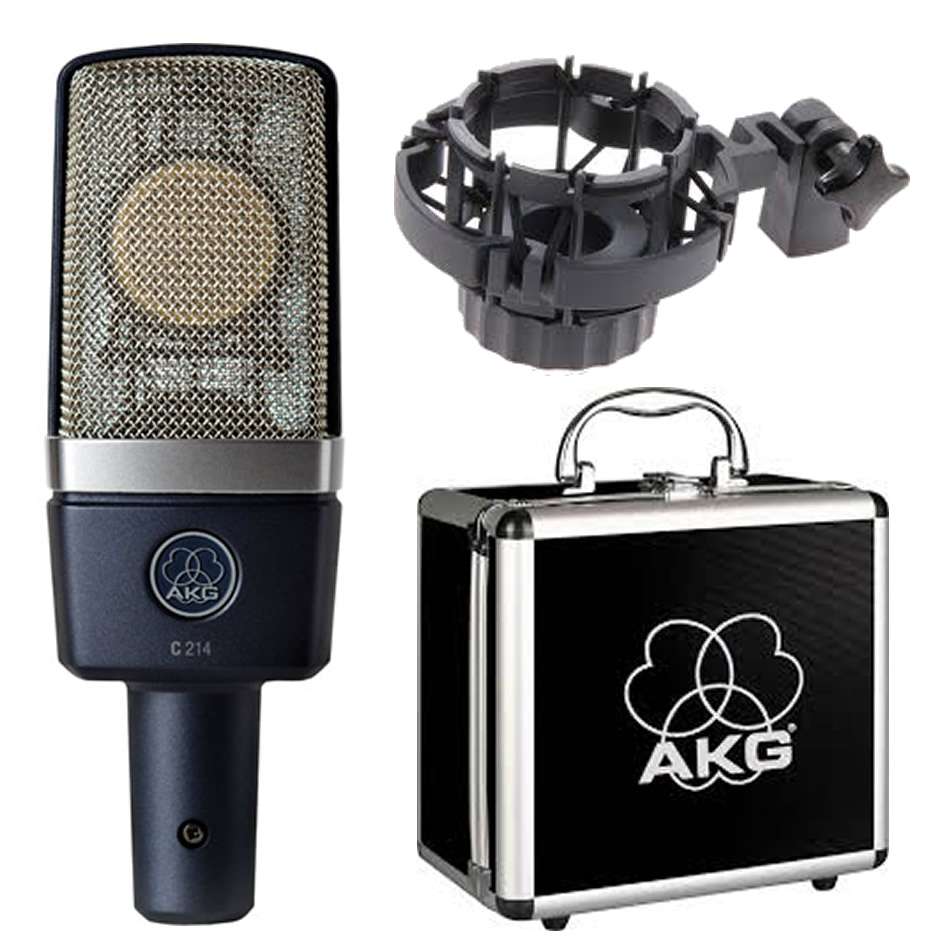

The die-cast metal body with shock- and scratch-resistant finish features a double-mesh grille which protects the capsule and ensures efficient rejection of RF interference without affecting acoustics. The C214 comes with a metal carrying case, a foam windscreen, and a spider-type shock mount.

SONIC CHARACTER OF THE C414 STUDIO MICROPHONE

AKG’s legendary C214 Large-Diaphragm Condenser Microphone needs no introduction as it is a tool found in most recording studios and has been used on thousands of hit records.

Plus, it has been on stage with artists of every musical genre and is also used by leading broadcast facilities the world over.

The C214 is designed as a cost-effective alternative to the high-end, industry-leading C414 family. This microphone uses the same 1″ dual-capsule as the legendary C414 in a single-diaphragm, cardioid-only design, giving it performance close to that of the C414.

LOW NOISE AND HIGH DYNAMIC RANGE

The AKG C214 Large-Diaphragm Condenser Microphone has legendary large-diaphragm sound and is capable of an incredible 143 dB dynamic range for uncompressed, life-like transients while delivering low self-noise of 13 dBA. The C214’s edge-terminated capsule delivers a highly detailed, up-front sound that brings out nuances of any voice or instrument.

PAD AND LOW-CUT FILTER

Thanks to its switchable -20 dB attenuation pad and 160 Hz low-cut filter, the AKG C214 Large-Diaphragm Condenser Microphone can be used in sound fields as high as 156 dB SPL. So, it can be used on stage for close-up miking for even very loud applications like drum overheads, guitar amps, or high-output brass.

INTEGRATED SUSPENSION

The AKG C214 is a Professional microphone that features an integrated capsule suspension that reduces mechanical noise and resonances for even greater sonic accuracy. The double mesh, all-metal grille protects the capsule and ensures high RF immunity without affecting acoustical performance.

RUGGED CONSTRUCTION

The C214 has a roadworthy construction quality with a scratch-resistant finish, a dent-resistant metal grille, and a gold-plated XLR output.

FEATURES AT A GLANCE

• Cost-effective alternative to the C414 family
• The same capsule as C414 B-XLS in a single-diaphragm, cardioid-only design
• Cardioid polar pattern reduces pickup of stage bleed and room ambiance
• 143 dB dynamic range (pad on)
• 156 dB maximum SPL (pad on)
• Switchable -20 dB pad and 160 Hz low-cut filter
• Integrated capsule suspension to reduce mechanical noise
• Rugged double-mesh grille for RF immunity but unaffected acoustics
• Operates on 48V phantom power (accepts 12 to 52 VDC phantom power)
• Spider-type shock mount and metal carrying case included
• All-metal die-cast body with shock- and scratch-resistant finish
• Designed, engineered, and built in Vienna, Austria
